- Year
- 2001
- Serial
- 2620794-0003
Specifications
Airframe
- MSN ·
- 2620794-0003
Performance (across variants)
- Range ·
- 430 nm
- Cruise ·
- 129 kt
- Service ceiling ·
- 17,000 ft
- MTOW ·
- 2,700 kg
- Passengers ·
- Up to 7
Avionics equipment
- Bendix King
- Honeywell
Avionics
Bendix King, Honeywell
Description

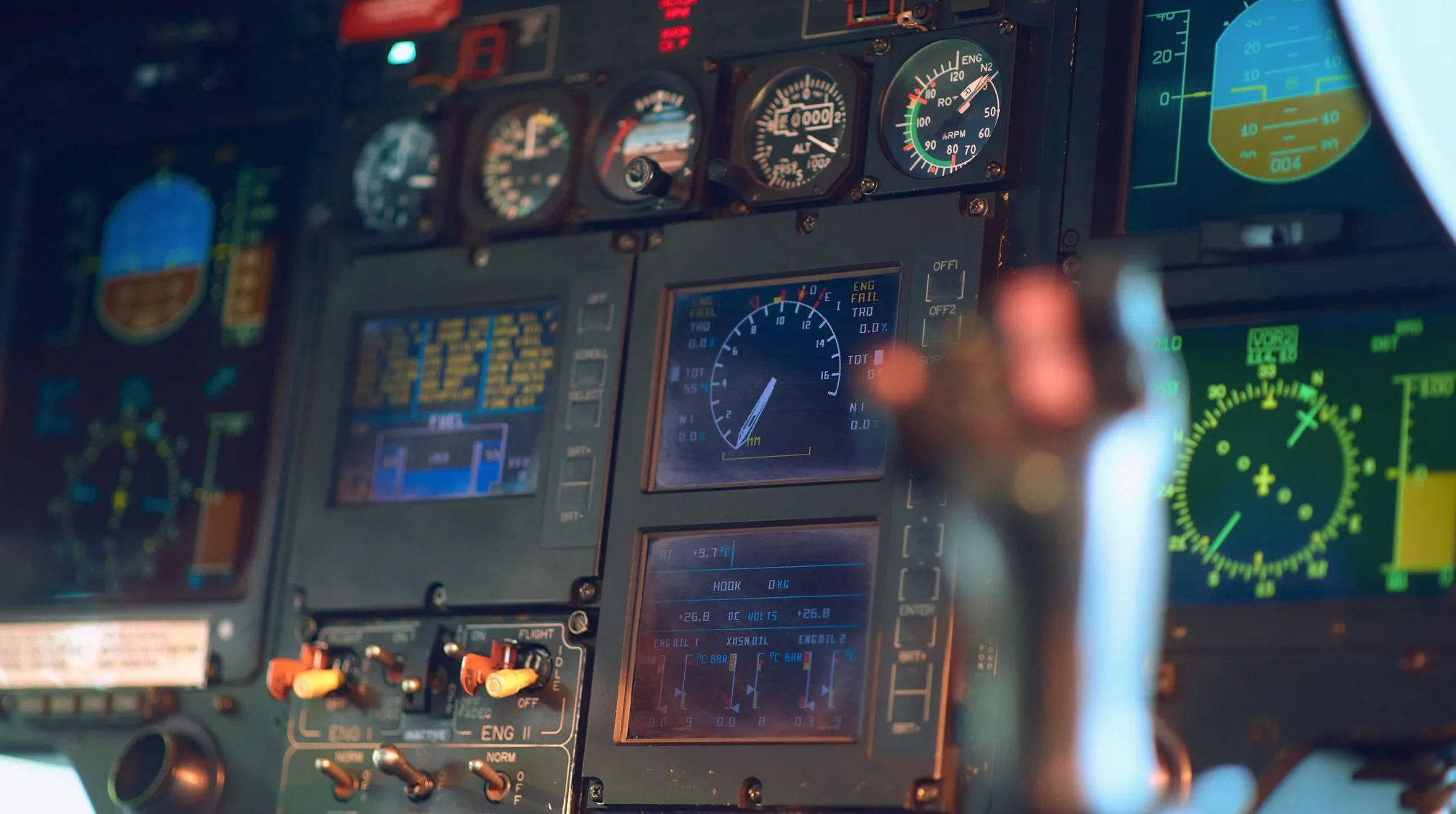

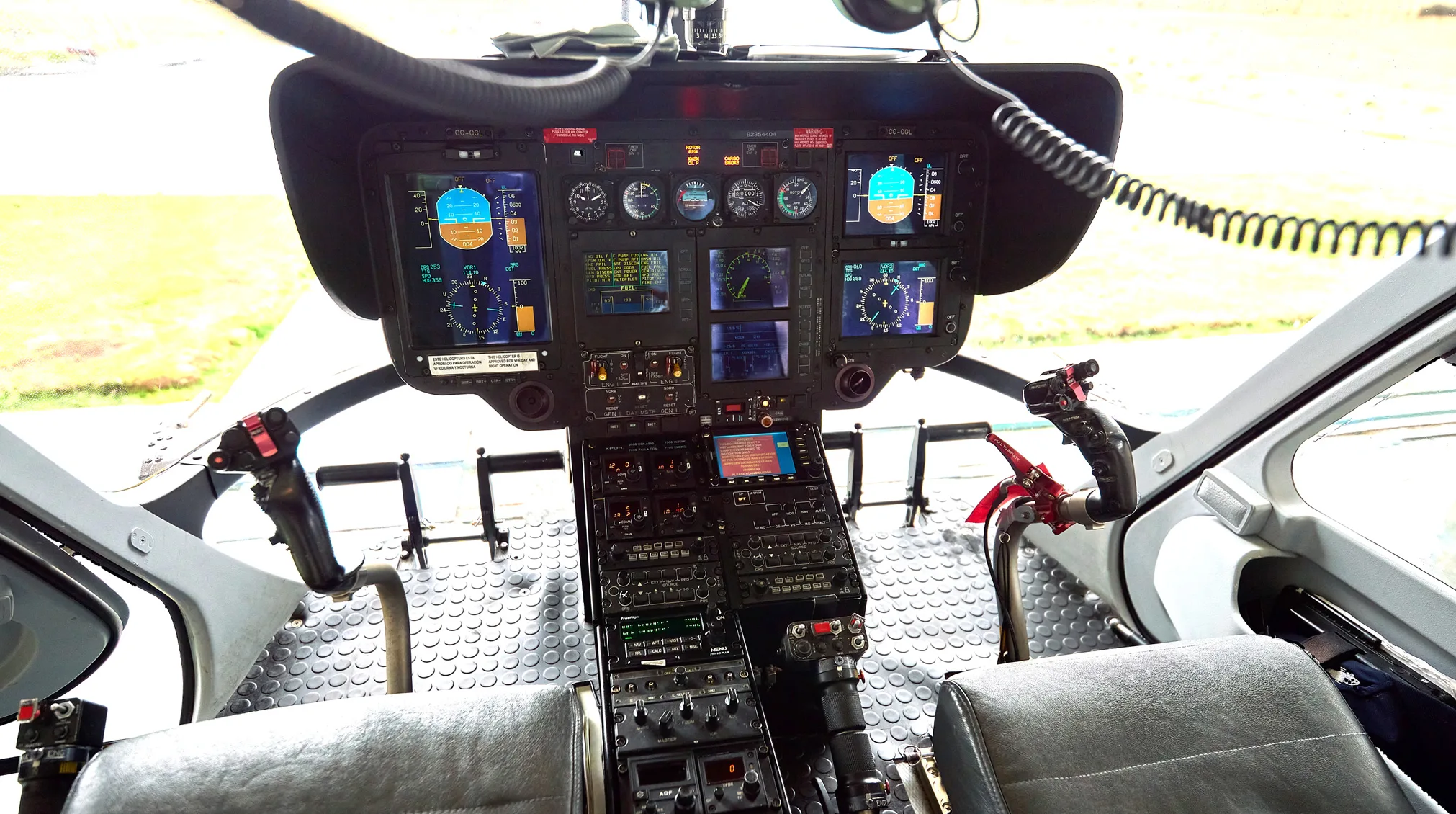

Details AVIONICS DualControls KTR 908 - VHF TRANSCEIVER (Dual) KNR 634 NAV TRANSCEIVER (VOR/LOC, GLIDE Slope, Marker Beacon) (Dual) ELT, Kannad 406AF P/N:S1821502-06 Serial:2620794-0003 Batt. Due: 11/2025 M.F.D SMD45 Pilot side (Dual) M.F.D SMD68 Co-pilot side (Dual) Audio IC AMPL. Becker IC-3100-4 ADU 3200 S/N:655 ADU 3200 S/N:656 DME Bendix King DM441B Serial:11506 EGPWS Honeywell MK XXII ADF CHELTON DF431B TRANSPONDER MST 67A Flight Cell Satellite DZM2 Marker Beacon, integrated in KNR 634A (Dual) Moving Map Dornier DKG 4 AHRU Attitude and Heading Reference System AHRU 420-00332-430 Radio Altimeter KRA-405B (Dual) GPS Trimble 2101 IO Plus VHF FM Transceiver Icom IC F5011 Audio System (Dual) Becker AS 3100-12 OPTIONAL EQUIPMENT Dart Emergency Float system with raft Cargo hook FP Autopilot & AFCS upgrade kit 2 AHRS & 2 magnetometer Fuel management system Adapter headphone mono/stereo Fuzz burner Main Rotor Blade Folding Provisions Rotor Brake System Bleed Air Heating Cabin Cargo Compartment Separation Engine fire extinguishing system Emergency Battery Pack Search Light & Fixed Landing Light w/ White Strobes WSPS Wire Strike Protection System RP for floats negotiable
