2005 American Champion 8KCAB Super Decathlon
2005 · N552DM · San Angelo
Specifications
Airframe
- Total time
- 531.3 hr
- MSN
- 984-2005
Registry
- ICAO24
- A70730
- Airworthiness
- 1NA
- Cert. expires
- 11/30/2028
- Registration
- Active
Performance (across variants)
- Range
- 380 nm
- Cruise
- 150 kt
- Service ceiling
- 16,000 ft
- MTOW
- 800 kg
- Passengers
- Up to 2
Description

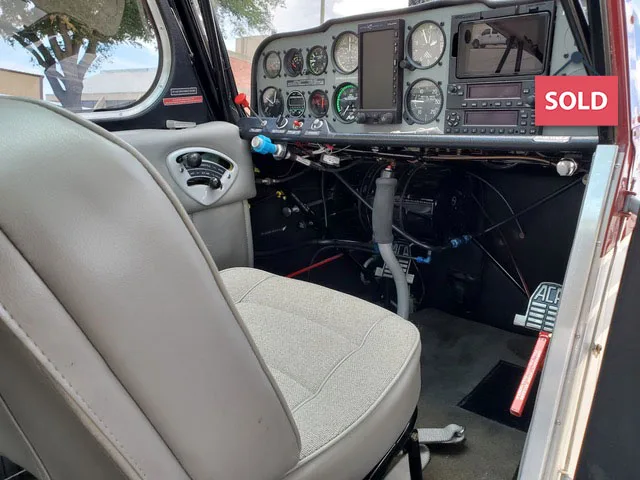

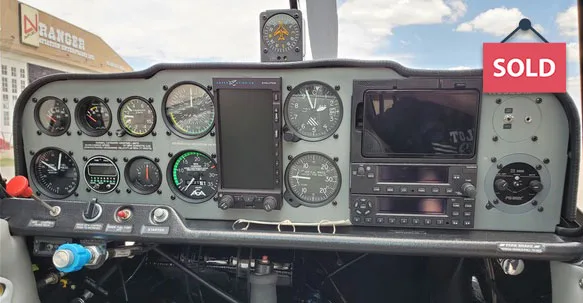

2005 American Champion 8KCAB Super Decathlon. Total Time: 531.3. Engine: Lycoming AEIO-360–H1B (180 HP). Propeller: MTV-9-B-C/C188-18b (3 Blade). Avionics: Garmin GTR 225 Com, PS Engineering PM3000 Stereo Intercom, Aspen Evolution 1000 VFR Primary Flight Display (PFD) EFIS Primary Flight Instruments, Garmin Aera 660 5-Inch Touchscreen Map Display with built-in GPS/Glonass Receiver, Airgizmos Aera 660 Panel Dock, Garmin GTX 345 ADS-B ‘In/Out’ Transponder with Garmin Encoder. Optional Equipment: Baggage Door, Wheel Pants, Brackett Air Filter BA8103-1, PAI-700 Vertical Card Compass, Hooker Custom Belt Harnesses, Accelerometer, Smartscan SR-8, Wing Tip Strobes, Aileron Spades, Speed Fairings. Paint: Boston Maroon with White Accent – Above Average Condition. Interior: Gray Vinyl with Cloth Seat Inserts – Above Average Condition. Damage History: None. Gross Weight: 1,950 lbs. Empty Weight: 1,358.02 lbs. Useful Load: 591.98 lbs.
Comparable sales
Registration history
(1)- N552DMUSACTIVEREDSTONE AERO LLC2021 – present
Owner names are published by the issuing civil registry (FAA / CCARCS / CASA / ANAC / NZ CAA). Owner addresses present in the source are not republished here.
The FAA paperwork
TCDS A21CE · 13 · issued 2004-10-14
The FAA-issued Type Certificate for this model is on file (TCDS A21CE), but we haven't yet extracted the structured spec values.
Read the TCDS (PDF) →
