- Total time
- 4,293 hr
- Year
- 2005
- Serial
- 680-0043
- Location
- Burlington, United States
Specifications
Airframe
- Total time ·
- 4,293 hr
- MSN ·
- 680-0043
- Seats ·
- 10
Powerplant
- Engine ·
- 2× Pratt & Whitney PW306C
- Engine 1 to TBO ·
- 1,754 hr
- Engine 1 serial ·
- PCE-CG0089, PCE-CG0088
Performance (as advertised)
- Cruise ·
- 459 kt
- Range ·
- 2,643 nm
- Fuel burn ·
- 202
Performance (across variants)
- Range ·
- 2,700 nm
- Cruise ·
- 446 kt
- Service ceiling ·
- 47,000 ft
- MTOW ·
- 13,900 kg
- Passengers ·
- 10 as configured (up to 14 across variants)
Avionics equipment
- Honeywell
- Honeywell Primus 880
- Honeywell Primus Epic
Avionics
Honeywell, Honeywell Primus Epic, Honeywell Primus 880
Interior

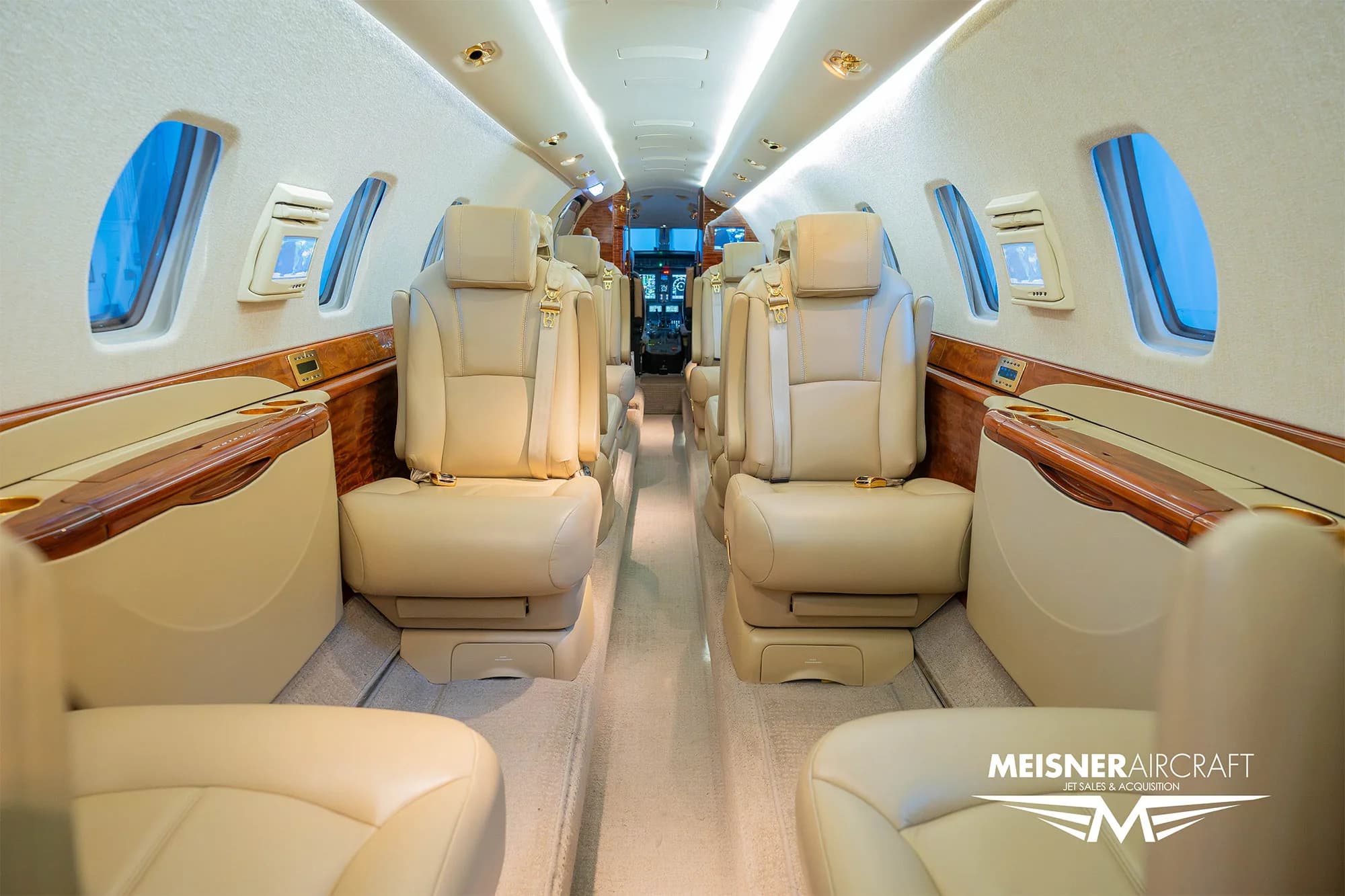

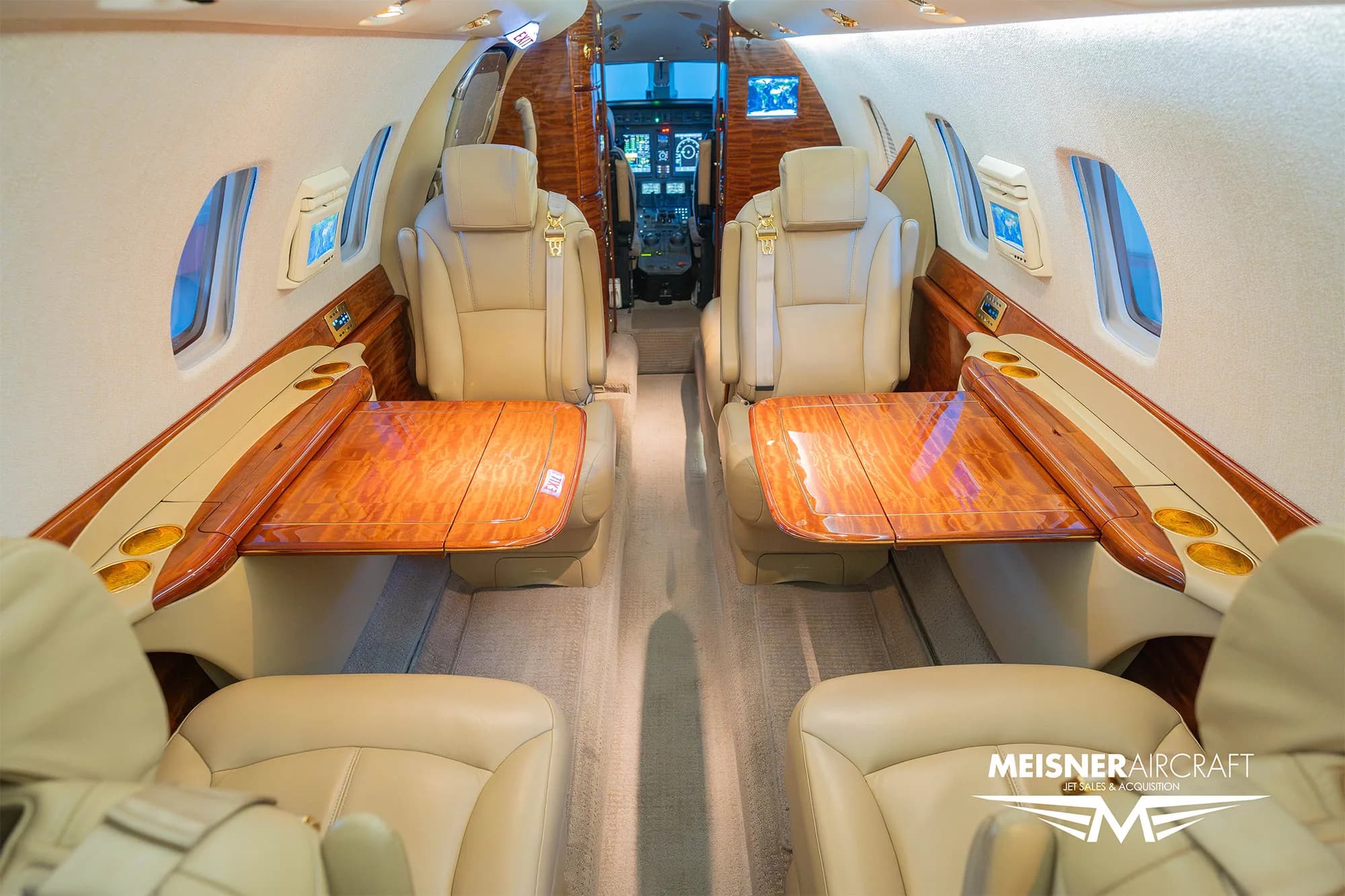

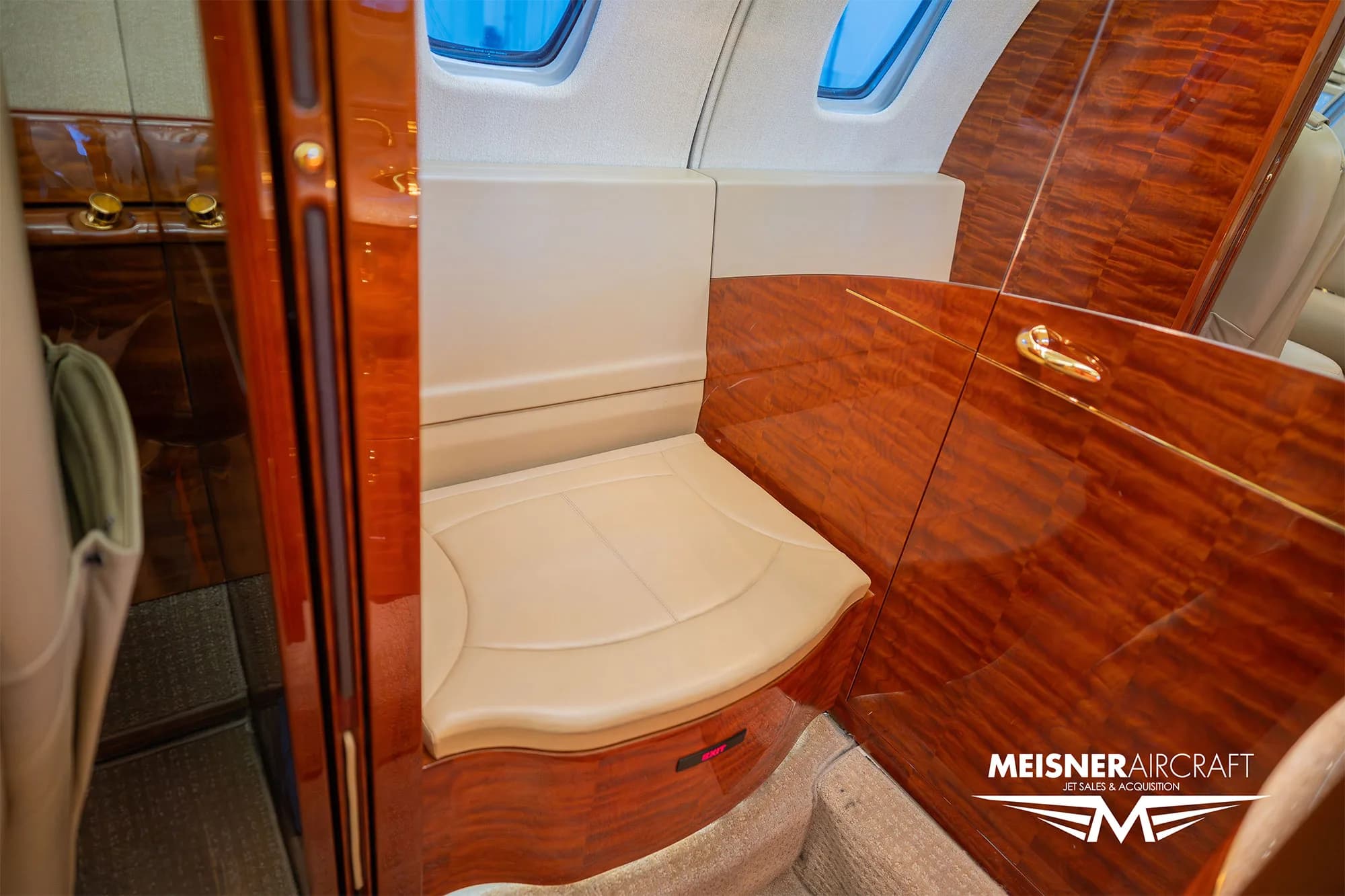

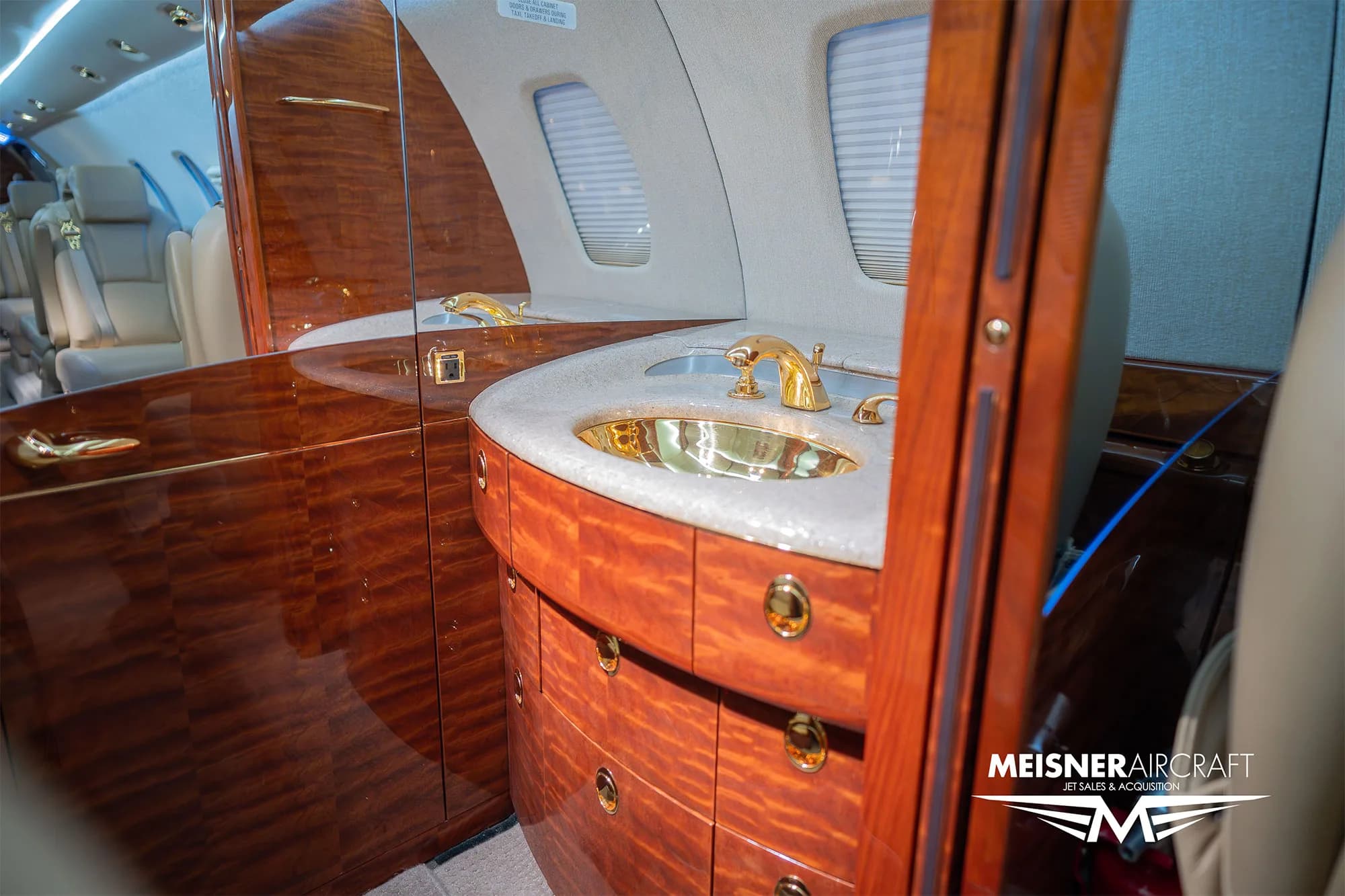

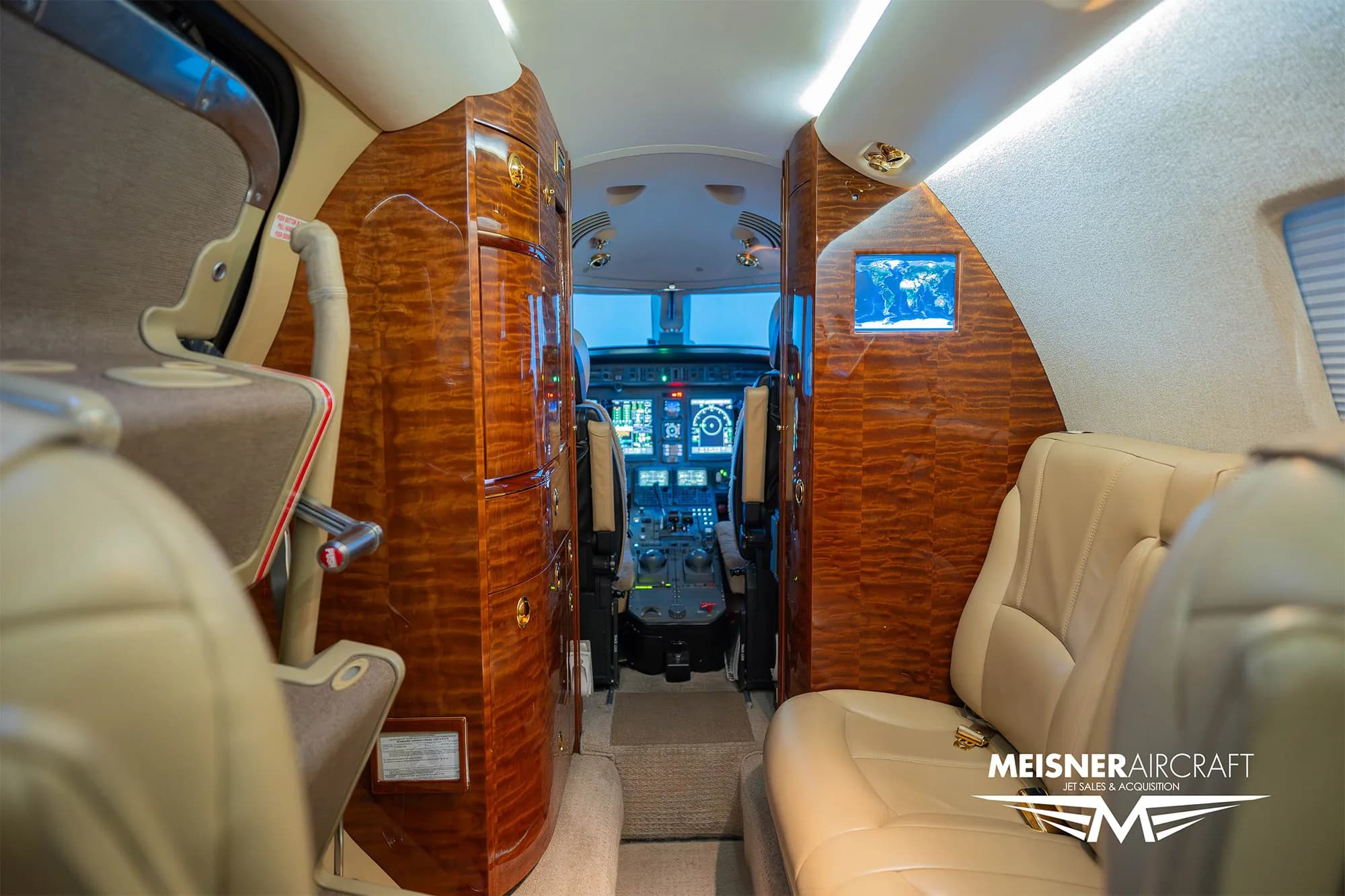

Interior Condition: Completed in 2017 by Textron vendor Protec Interiors, this sought-after 10-passenger interior features a forward two-place divan and a double club seating configuration. The aft fully enclosed lavatory includes a sink vanity, while hardwood privacy doors separate the cockpit from the galley. Airshow and entertainment are presented on a forward bulkhead monitor and individual wall-mounted screens in the club areas. The cabin was upgraded with custom West African Pommele veneer, extended along the lower sidewalls for a refined, elevated look beyond the standard Sovereign design. All seating was refreshed with new Aerolite foam and upholstered in Garrett leather in a Parchment tone. Metal finishes were re-plated in polished gold, and all seatbelts were rewebbed. The interior is fully fireblocked and Part 135 compliant. Interior Option: 10-passenger
Exterior

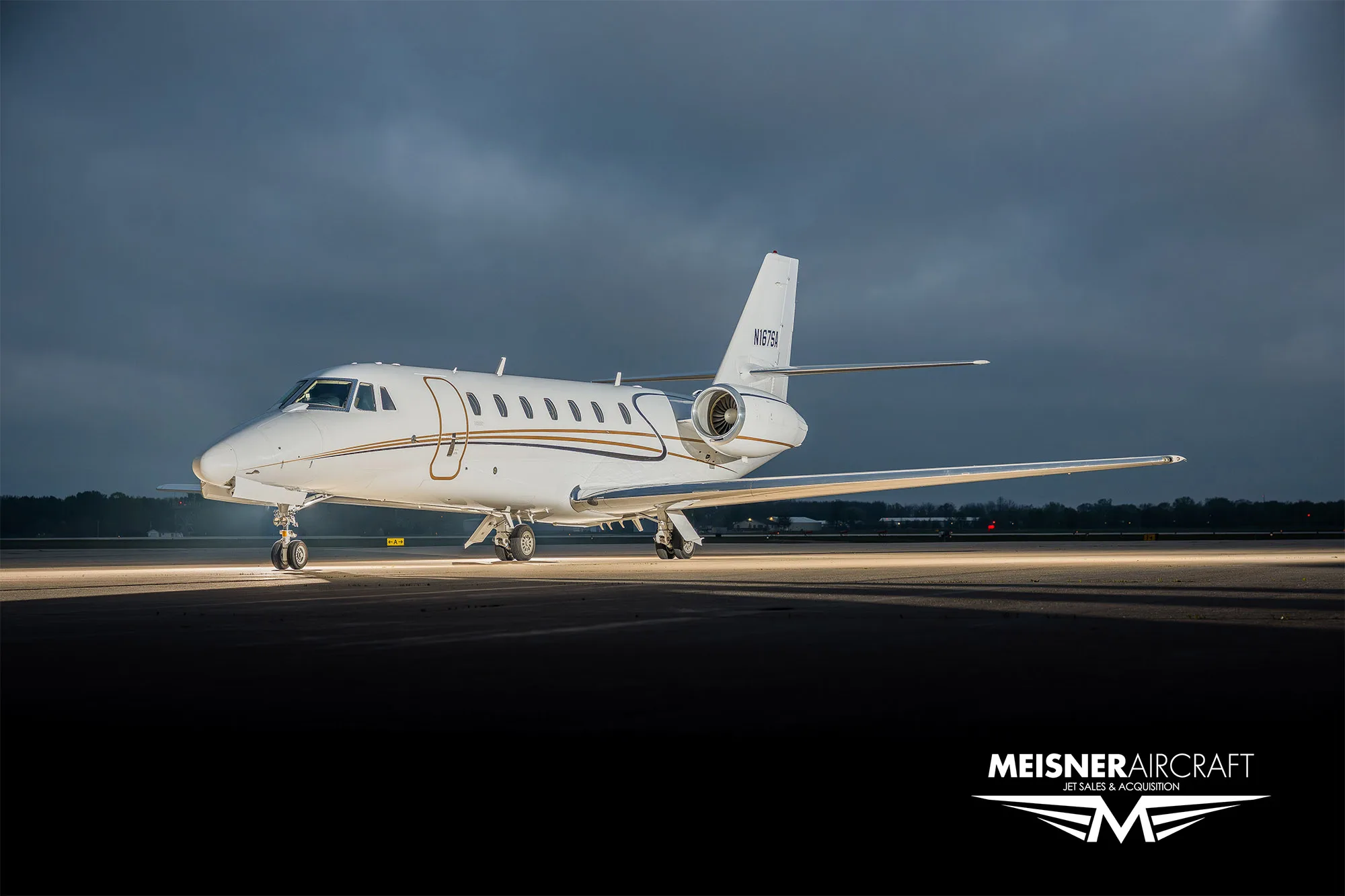

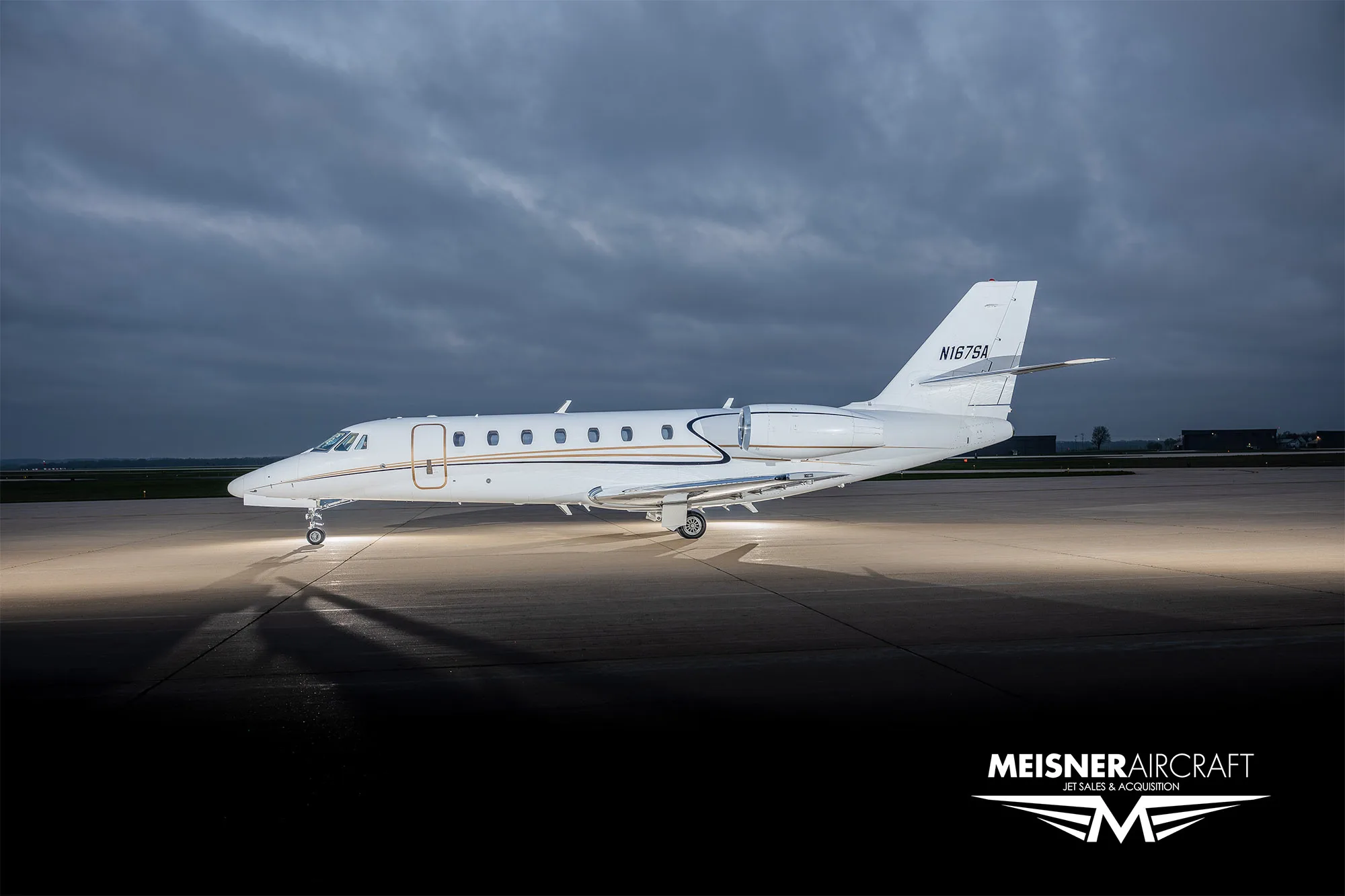

Exterior Condition: Completed in Overall Matterhorn White with Las Vegas Gold & Black Metallic accenting.
Maintenance
Maintenance: Enrolled on CESCOM Maintenance Tracking
Description

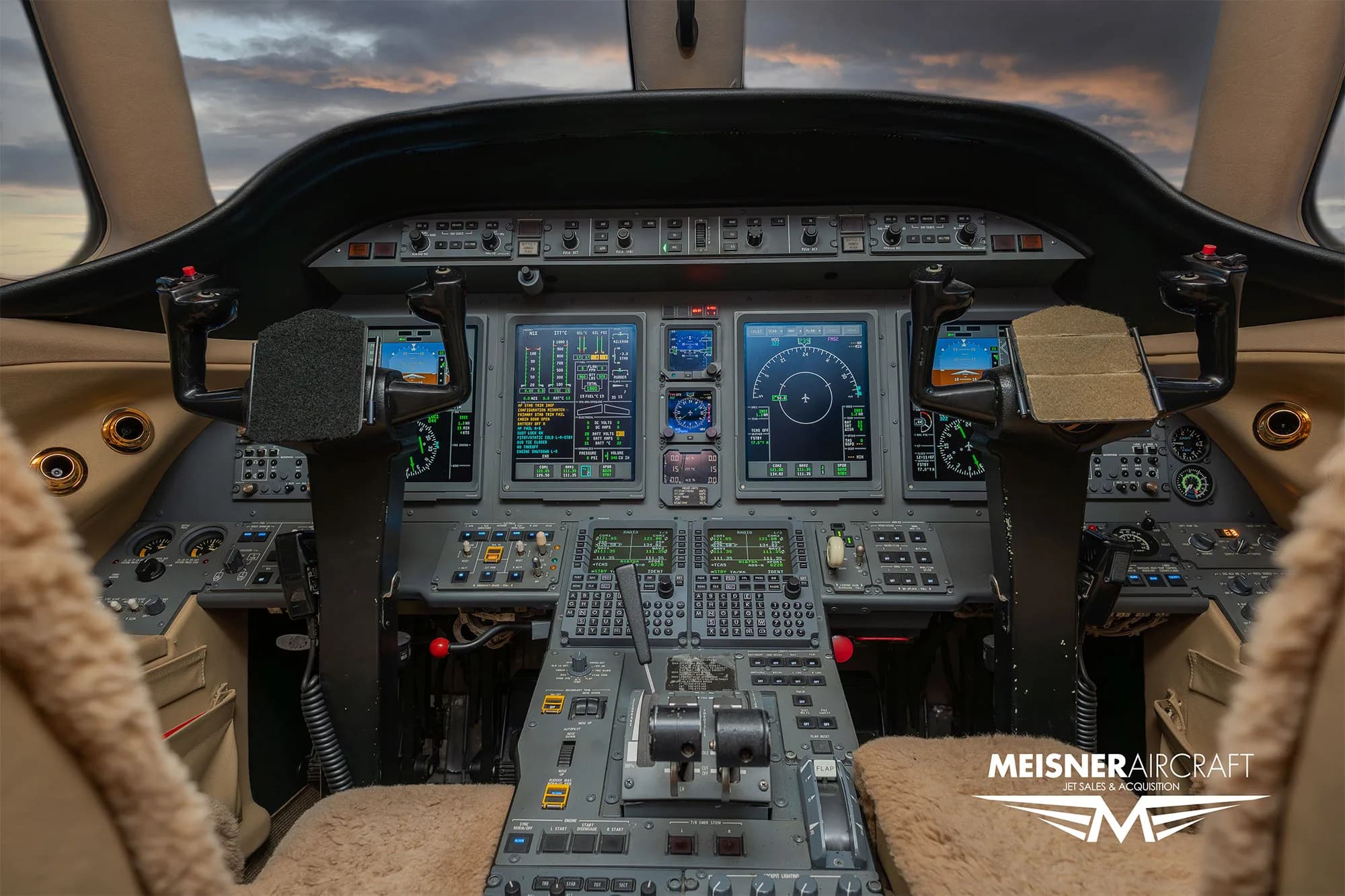

Specifications Airframe 4,293 Hours Total Time 3,237 Landings Engine (2) Pratt & Whitney PW306C E1 SN: PCE-CG0089 4,246 Total Hours 3,238 Total Cycles Hot Section c/w at 3,038 Engine Hours (by Pratt & Whitney WV) 1,754 Remaining until Overhaul E2 SN: PCE-CG0088 4,246 Total Hours 3,238 Total Cycles Hot Section c/w at 3,038 Engine Hours (by Pratt & Whitney WV) 1,754 Remaining until Overhaul APU Honeywell RE100(CS) SN: P-153 2,699 Total Hours Avionics Enrolled on HAPP Honeywell Primus Epic Avionics Suite with 5.2 Software Four (4) Honeywell DU-1080 Displays Dual (2) Honeywell MRC-855 Dual (2) Honeywell MC-850 FMS/GPS (WAAS/LPV) Honeywell DF-855 ADF L3 Harris FA2100 CVR Honeywell HF-1050 Honeywell RT-300 Radio Altimeter CSD-714 SELCAL HF Receiver KRX-1053 Honeywell GP-400 Flight Guidance Controller Dual (2) XS-858B Transponders (ADS-B Out) L3 Flight Data Recorder Dual Honeywell DM-855 Honeywell Primus 880 Weather Radar Honeywell TCAS 2000 w/7.1 Kannad 406AF ELT Take-Off and Landing Database (TOLD) Runway Awareness Advisory System (RAAS) Interior Completed in 2017 by Textron vendor Protec Interiors, this sought-after 10-passenger interior features a forward two-place divan and a double club seating configuration. The aft fully enclosed lavatory includes a sink vanity, while hardwood privacy doors separate the cockpit from the galley. Airshow and entertainment are presented on a forward bulkhead monitor and individual wall-mounted screens in the club areas. The cabin was upgraded with custom West African Pommele veneer, extended along the lower sidewalls for a refined, elevated look beyond the standard Sovereign design. All seating was refreshed with new Aerolite foam and upholstered in Garrett leather in a Parchment tone. Metal finishes were re-plated in polished gold, and all seatbelts were rewebbed. The interior is fully fireblocked and Part 135 compliant. Exterior Completed in Overall Matterhorn White with Las Vegas Gold & Black Metallic accenting. Maintenance Status Docs 6, 10, 12, 14, 15 Recently c/w at Textron–San Antonio Enrolled on CESCOM Maintenance Tracking Additional Equipment & Options Airshow System 2-Place Couch upgrade (10pax) L3 Flight Data Recorder Pulse Light System Extended Range Oxygen Baggage Heating Improvement SB 680-21-04 Air Conditioning Duct Improvement SB 680-21-08 Sidewall Cabin Monitor Option
