Specifications

Description

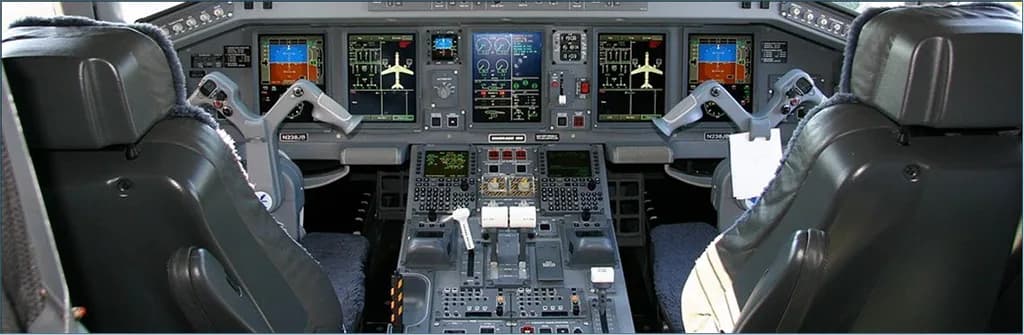

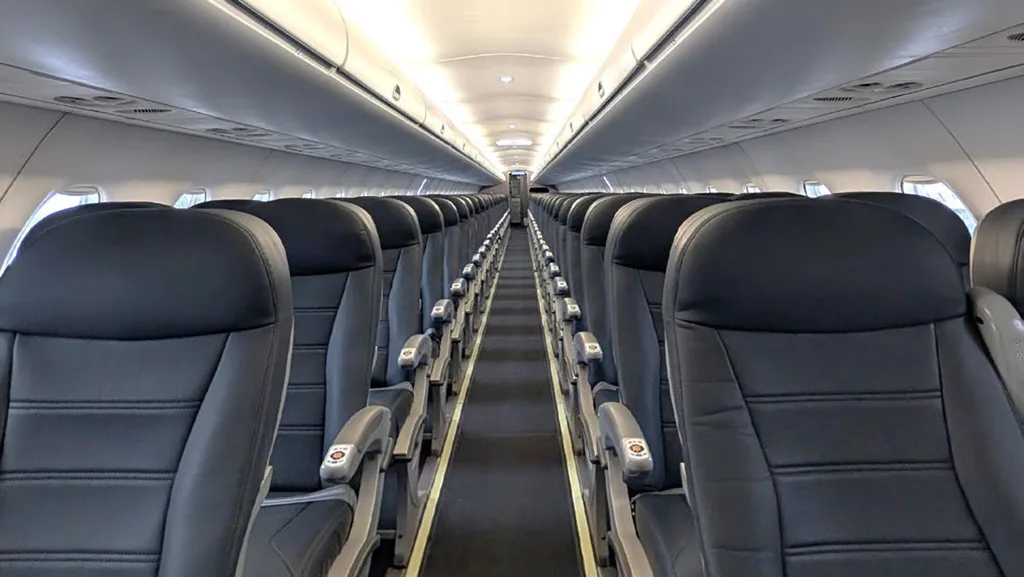

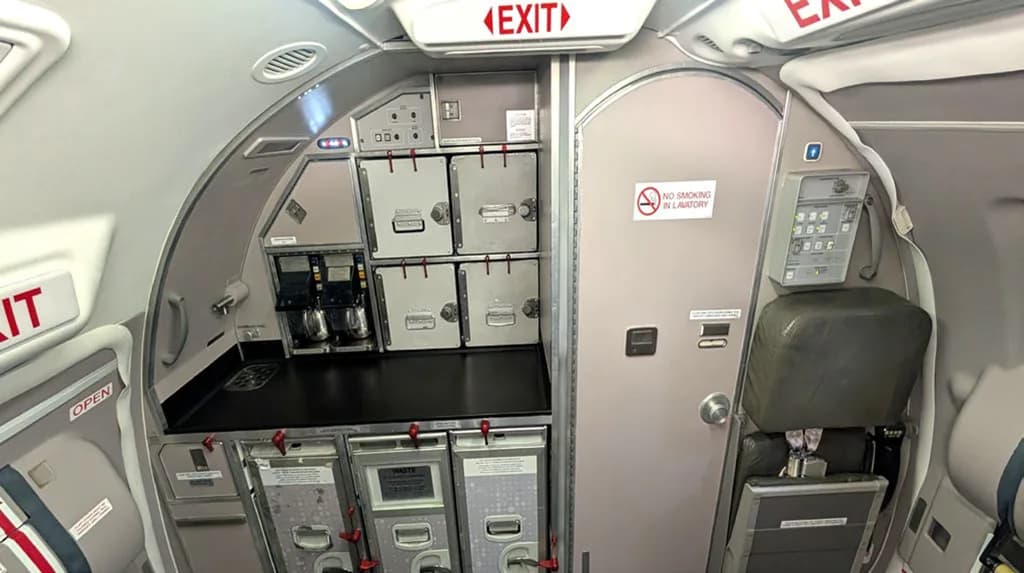

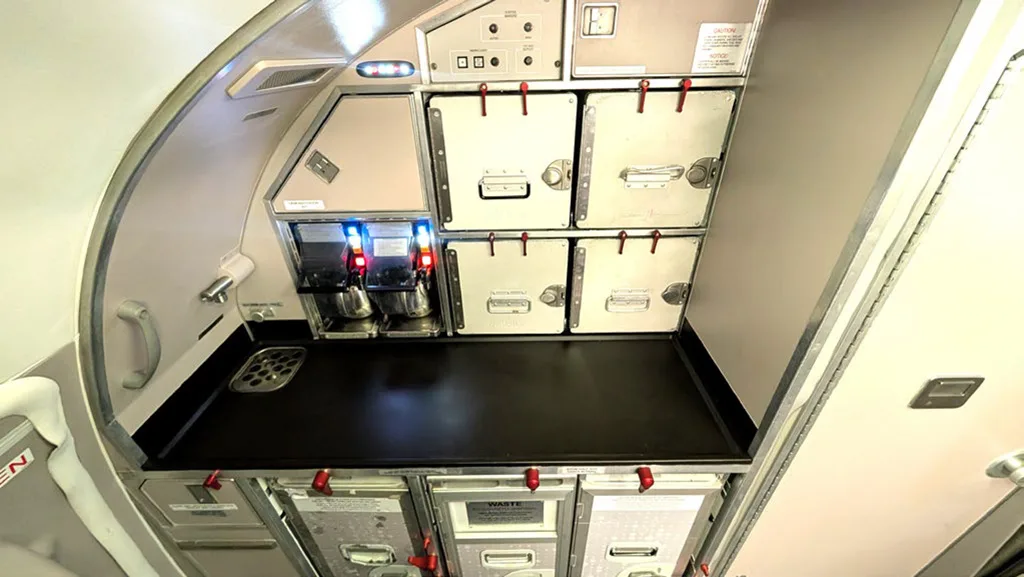

Aircraft Detail Airframe TTSN47,472 / 45,896 TCSN31,366 / 30,392 Engine(s) GE CF34-10E5 TTSN45,065 & 42,823 / 44,781 & 37,707 TCSN29,924 & 28,581 / 29,533 & 18,893 Hours Since Last Shop Visit2,620 & 2,626 / 8,456 & 16,724 Hours since Perf. Restoration9,585 & 10,408 / 8,456 (LLP) & 16,724 (LLP) Cycles remaining to first limiter14,654 & 15,997 / 18,907 & 14,664 Next limiting itemCombustion Case / All Rotating Combustion Case Remaining (For the sn 19000040)38,507 / 15,684 EDT Margin54.9 Degrees & 32.9 Degrees / 31.1 Degrees & 49.7 Degrees Engine SN994175 & 994188 / 994266 & 994360 On Engine ProgramN/A APU 4505001A TTSN20,315 / TBA TCSN36,516 / TBA Hours since last shop visit5,282 / 0 Cycles remaining to first limiter9,052 / 17,500 Next limiting item2nd Stage Turbine Disk / - SNHSC-E0623169 / HSC-E0623169 Maintenance Maintenance / Time Remaining / Interval / Due @ B1 check / 5,096 / 7,500 FH / 52,569 FH 72 Month / - / - / Jul-29 96 Month / - / - / Oct-28 Interior Details Both aircraft are configured with 100 all economy seats (32” pitch, except for exit rows at 39”) Lavatory located Fwd and Aft Cabin Stowage located Fwd Cabin Avionics None Additional Details For SN: 19000030 Landing Gear / Nose / Left Main / Right Main SN: 00479 / 00153 / 05158 TCSN: 22,092 / 33,550 / 33,550 Cycles remaining to OH: 23,487 / 10,925 / 10,925 Next OH due: Dec 2035 / Feb 2028 / Feb 2028 Overhaul Interval: 144 Months / 25,000 Cycles For SN: 19000040 Landing Gear / Nose / Left Main / Right Main SN: 0035 / 00130 / 05135 TCSN: 30,519 / 27,293 / 28,979 Cycles remaining to OH: 10,920 / 13,964 / 12,278 Next OH due: 21 Dec 2027 / 25 Aug 2027 / 25 Aug 2027 Overhaul Interval: 144 Months / 25,000 Cycles
