Specifications

Description

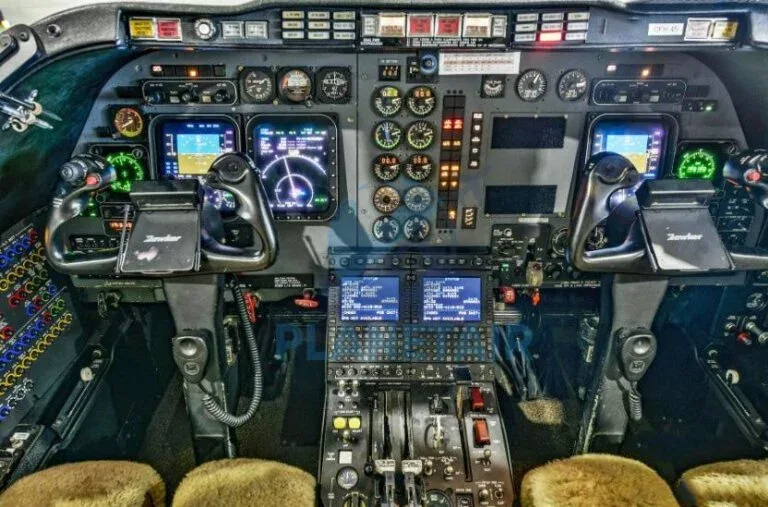

Visão geral Especificações Visão geral Ex Works Valor de venda + impostos para nacionalização Description Delivered with Fresh A-D Inspections; Engines Only 863 Hours TSO; King HF950 HF Radio; Fairchild FA2100 Digital Flight Data Recorder; Air Conditioning; Thrust Reversers; ADS-B Out; Additional Aeromed Power in Sidewall; Excellent Pedigree; Computerized Maintenance Tracking Program. Airframe Total Time 4,902.2 Total Landings 4,437 Engine 1 Engine 1 Time 4,902.2 SNEW Engine 1 Cycles 4,229 Engine 1 Notes 863.2 TSO Engine 2 Engine 2 Time 4,902.2 SNEW Engine 2 Cycles 4,806 Engine 2 Notes 863.2 TSO Avionics ADS-B Equipped Avionics/Radios Collins Pro Line V Avionics System including: Collins 3 Tube EFD-871 EFIS Dual Collins VHF-422A Comms w/8.33 kHz Spacing Dual Collins VIR-432A Navs Dual Collins TDR-94Ds w/Mode S Transponders Collins ADF-462 Dual Collins DME-442s Collins ALT-55B Radar Altimeter Dual Marker Beacons & Glideslopes Dual RTU-870 Radio Management Units Dual SDU-640As RMI Dual Collins CDU-5000 Avionics Management Systems Dual Collins APS-4000 Flight Director System with Dual FCS- 850 Autopilot Dual Collins AHC-85E AHRS Honeywell Mark V EGPWS w/Windshear Dual DB 438 Audio Panels Collins RTA-854 Color Radar Collins TTR-4000 TCAS II w/Change 7.0 Traffic Avoidance System with Visual Indicators Dual Collins 4000A GPS Artex 406 ELT USB Database Loader CVR Additional Equipment R134A Air Conditioning Thrust Reversers ADS-B Out RVSM King HF950 HF Radio Fairchild FA2100 Digital Flight Data Recorder Additional Aeromed Power in Sidewall Spectrum Air Ambulance Module Part #2200-016 available at an additional cost Exterior Exterior Notes Overall White with Red and Charcoal Stripes. Interior Lavatory Lavatory Configuration Aft Interior Notes Beige Leather Seats, Medium Beige Carpet, Mahogany Woodwork with Leather Inlays, RH Refreshment Center, Aft Enclosed Lavatory with Belted Seat, Vanity Sink, Aft Baggage. Inspection Status A Inspection due @ 5025.7 hours; in process B Inspection due @ 5229.3 hours; in process C Inspection due @ 5269.9 hours; in process D Inspection due @ 5000.0 hours; in process MLG OVH due @ 5000 landings LH & RH Engine HSI next due @ 5869.9 engine hours LH & RH Engine OVH next due @ 7669.9 engine hours A aeronave acima é de terceiros, os dados estão sujeitos a verificação. Especificações Exterior Exterior Height: 13 ft 9 in Wing Span: 43 ft 5 in Length: 48 ft 4 in External Baggage: 25 cu ft Interior Cabin Height: 4 ft 10 In Cabin Width: 4 ft 11 In Cabin Length: 15 ft 7 In Cabin Volume: 305 cu ft Door Height: 4 ft 2 In Door Width: 2 ft 5 In Internal Baggage: 31 cu ft Occupancy Crew: 2 Passengers: 8 Operating Weights Max T/O Weight: 16300 Lb Max Landing Weight: 15700 Lb Operating Weight: 10985 Lb Fuel Capacity: 4912 lbs Lb Payload W/Full Fuel: 603 Lb Max Payload: 2015 Lb Range Normal Range: 1180 nm Max Range: 1519 nm Service Ceiling: 45000 ft Distances Takeoff Distance: 3906 ft Balanced Field Length: 4600 ft Landing Distance: 5025 ft Performance Rate of Climb: 4020 fpm Climb Rate One Engine Inop: 560 fpm Max Speed: 450 kts Normal Cruise: 450 kts Economy Cruise: 410 kts Avionics:: Collins Pro Line 4 Power Plant Engines: 2 Engine Mfg: Pratt & Whitney Canada Engine Model: JT15D-5R
