Specifications

Description

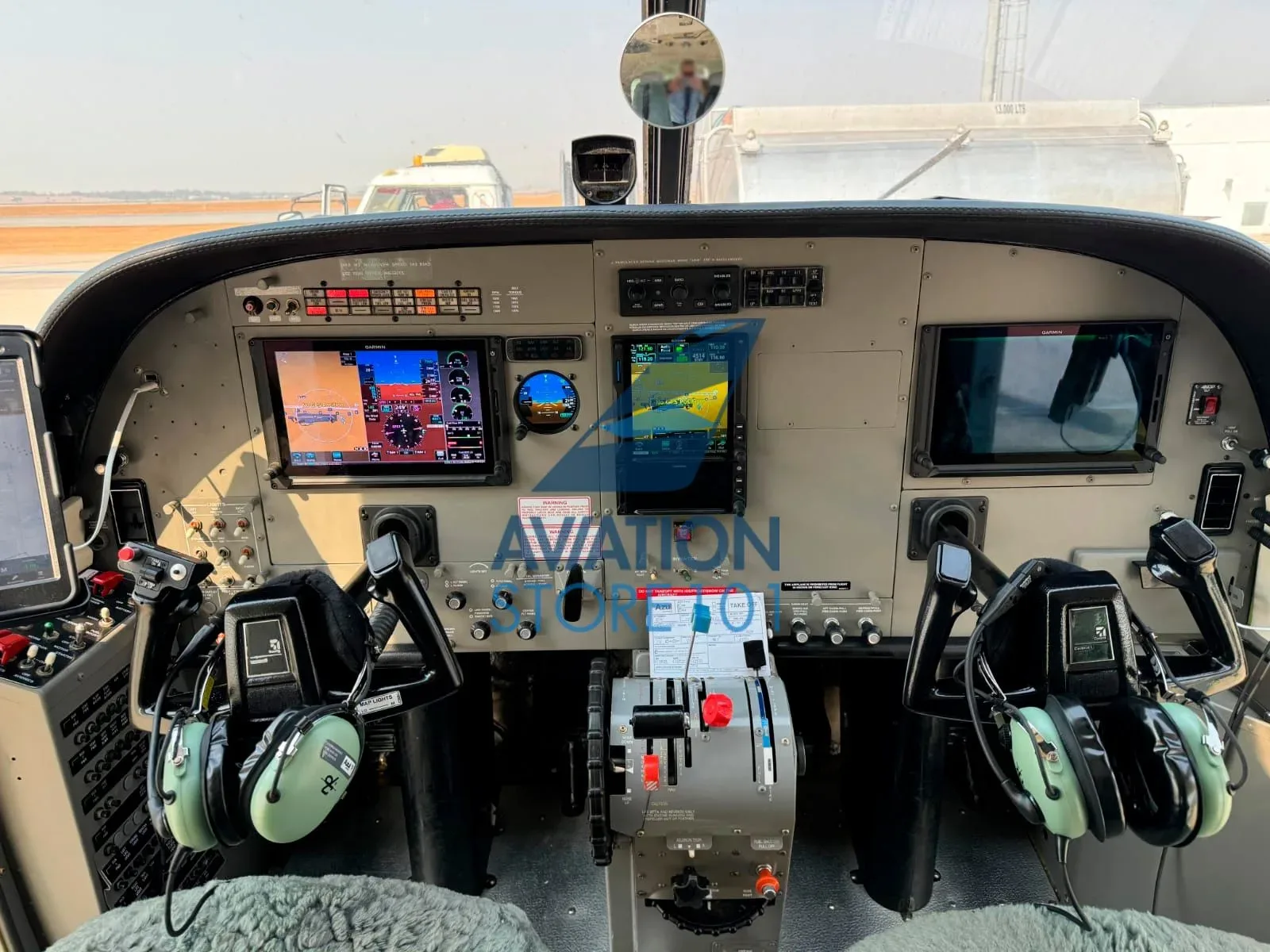

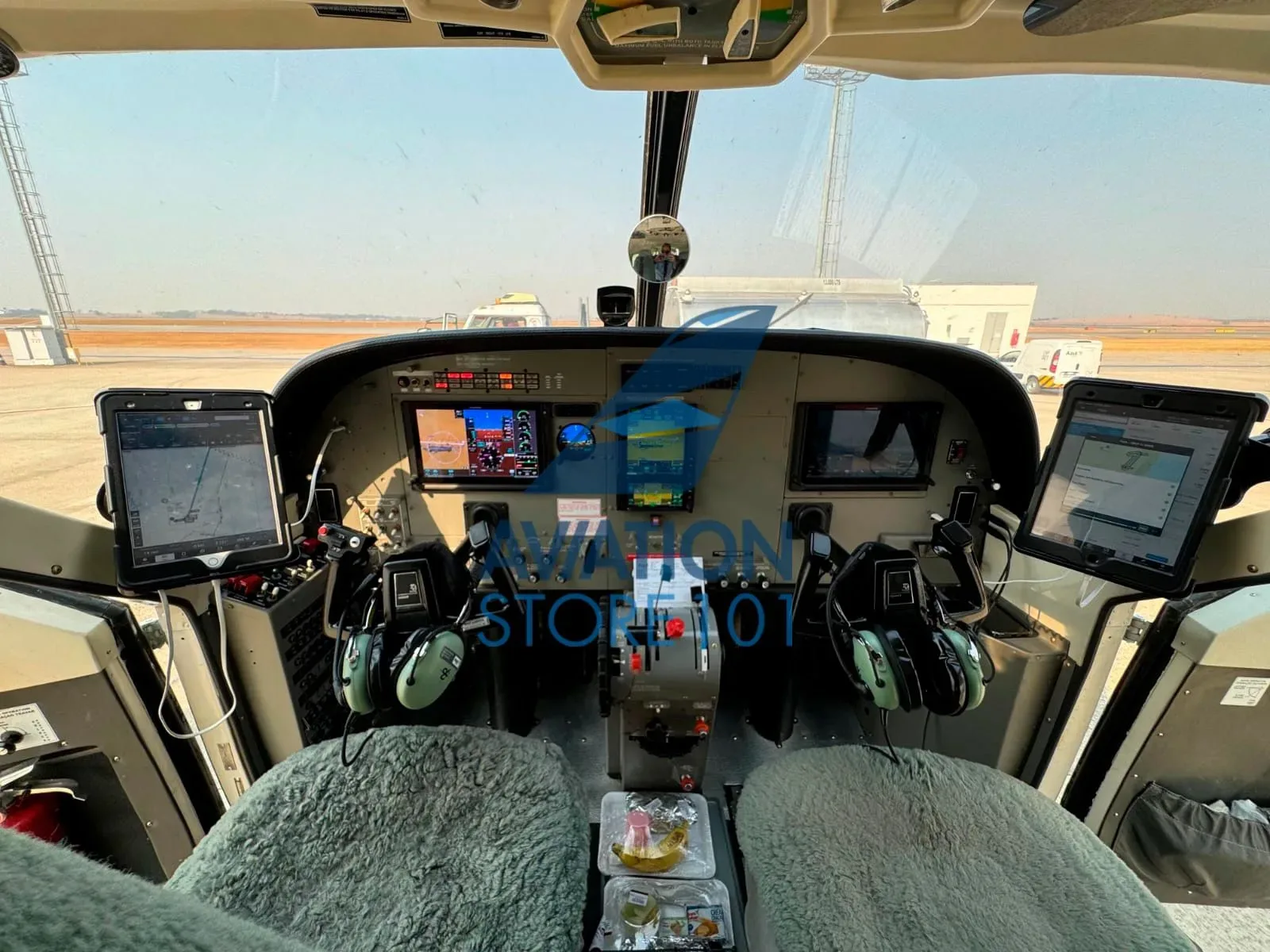

Visão geral Especificações Visão geral COTA de 25% – 1/4 BASE SÃO PAULO Equipamentos Garmin G600 TXi GTN 750XI GTN 650XI Weather RADAR – GWX 80 Traffic Advisor System TAS – GTS 825 Transponder – GTX-345R Audio Panel – GMA 35 A aeronave acima é de terceiros, os dados estão sujeitos a verificação. Especificações DIMENSIONS Length 41 ft 7 in (12.7 m) Height 15 ft 6 in (4.7 m) Wingspan 52 ft 1 in (15.9 m) Wing Area 279 sq ft (25.96 sq m) Wheelbase 13 ft 4 in (4.05 m) Tread 11 ft 8 in (3.56 m) CABIN INTERIOR Height 54 in (1.37 m) Width 64 in (1.63 m) Length 21 ft 4 in (6.50 m) Maximum Occupants 10 – 14 BAGGAGE CAPACITY Weight 1,410 lb (640 kg) Volume 143 cu ft (4.05 cu m) WEIGHTS Maximum Ramp Weight 8,842 lb (4,011 kg) Maximum Takeoff Weight 8,807 lb (3,995 kg) Maximum Landing Weight 8,500 lb (3,856 kg) Usable Fuel Weight 2,246 lb (1,019 kg) Usable Fuel Volume 335 gal (1,269 l) Basic Empty Weight 5,310 lb (2,409 kg) Useful Load 3,532 lb (1,602 kg) Maximum Payload 3,190 lb (1,447 kg) Full Fuel Payload 1,286 lb (583 kg) PERFORMANCE Maximum Cruise Speed 185 ktas (343 km/h) Maximum Range 912 nm (1,689 km) Takeoff Distance 2,160 ft (658 m) Takeoff Ground Roll 1,399 ft (426 m) Landing Distance 1,836 ft (560 m) Landing Ground Roll 1,004 ft (306 m) Maximum Operating Altitude 25,000 ft (7,620 m) Maximum Climb Rate 1,275 fpm (389 mpm) POWERPLANT Manufacturer Pratt & Whitney Canada Model PT6A-140 Power Rating 867 shp (647 kw) Propeller Manufacturer McCauley Description 4 blade aluminum, constant speed, full feathering Visão geral COTA de 25% – 1/4 BASE SÃO PAULO Equipamentos Garmin G600 TXi GTN 750XI GTN 650XI Weather RADAR – GWX 80 Traffic Advisor System TAS – GTS 825 Transponder – GTX-345R Audio Panel – GMA 35 A aeronave acima é de terceiros, os dados estão sujeitos a verificação. Especificações DIMENSIONS Length 41 ft 7 in (12.7 m) Height 15 ft 6 in (4.7 m) Wingspan 52 ft 1 in (15.9 m) Wing Area 279 sq ft (25.96 sq m) Wheelbase 13 ft 4 in (4.05 m) Tread 11 ft 8 in (3.56 m) CABIN INTERIOR Height 54 in (1.37 m) Width 64 in (1.63 m) Length 21 ft 4 in (6.50 m) Maximum Occupants 10 – 14 BAGGAGE CAPACITY Weight 1,410 lb (640 kg) Volume 143 cu ft (4.05 cu m) WEIGHTS Maximum Ramp Weight 8,842 lb (4,011 kg) Maximum Takeoff Weight 8,807 lb (3,995 kg) Maximum Landing Weight 8,500 lb (3,856 kg) Usable Fuel Weight 2,246 lb (1,019 kg) Usable Fuel Volume 335 gal (1,269 l) Basic Empty Weight 5,310 lb (2,409 kg) Useful Load 3,532 lb (1,602 kg) Maximum Payload 3,190 lb (1,447 kg) Full Fuel Payload 1,286 lb (583 kg) PERFORMANCE Maximum Cruise Speed 185 ktas (343 km/h) Maximum Range 912 nm (1,689 km) Takeoff Distance 2,160 ft (658 m) Takeoff Ground Roll 1,399 ft (426 m) Landing Distance 1,836 ft (560 m) Landing Ground Roll 1,004 ft (306 m) Maximum Operating Altitude 25,000 ft (7,620 m) Maximum Climb Rate 1,275 fpm (389 mpm) POWERPLANT Manufacturer Pratt & Whitney Canada Model PT6A-140 Power Rating 867 shp (647 kw) Propeller Manufacturer McCauley Description 4 blade aluminum, constant speed, full feathering
