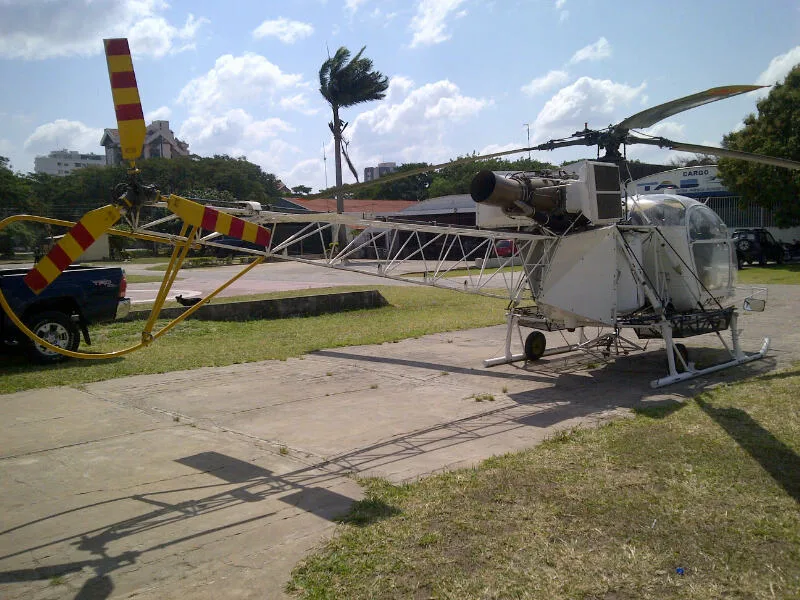

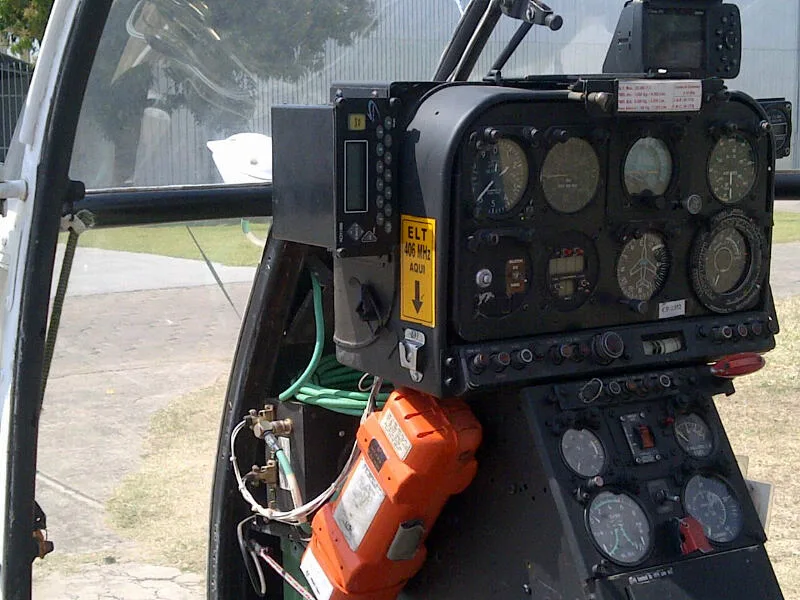

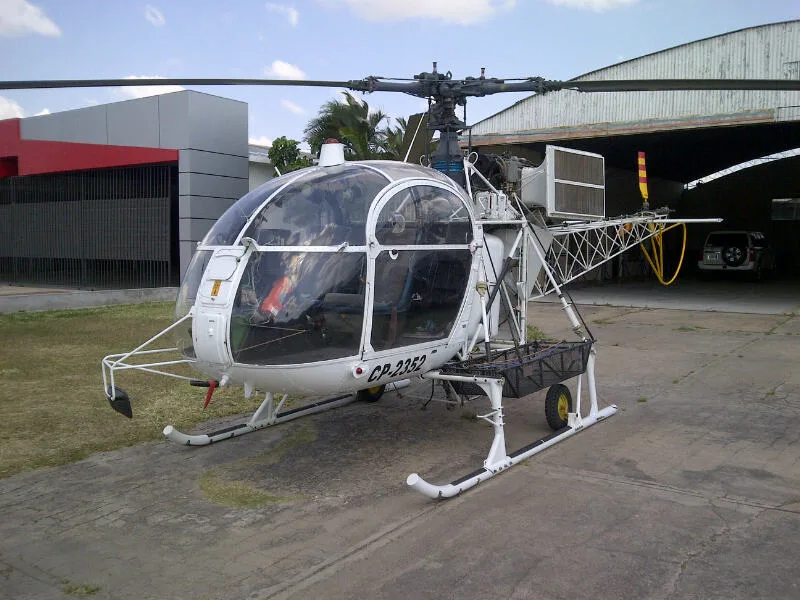

Specifications Registration: CP-2352 Serial Number: 2385/40 The SA-315B Lama was developed from the SA-318C Alouette II (using its airframe with some reinforcement) and continued on using the same serial number batch. Some SA-318C Alouette II’s were converted to the SA-315B Lama standard; these kept their original serial number, but usually had /xx added after the serial number; the xx being the conversion number. The SA-315B Lama used the same dynamic components, including the engine and rotor system, as the SA-316B Alouette III. Total Time Airframe (As of May 15, 2013): 6127 Hours Total Time Engines (As of May 15, 2013): 9058 Hours/6189 Cycles Engine Time Since Overhaul: 2411 Hours/2156 Cycles (3000 Hour TBO) 3200 Hour Inspection Completed July 2010 24 Month Inspection Completed January 2013 Conversion Performed by Eurocopter in 1992 Avionics Altimeter VSI Electric Attitude Airspeed Indicator Directional Gyro Compass Pitch Indicator Timer Turn Coordinator Engine Instruments Fuel Gauge ELT – 406 MHz Garmin 296 GPS Technisonic 138B VHF/FM High Band transceiver KY 196A VHF HF Bendix King Full Frequency Radio
