335 — Cessna Aircraft Company 335
Fleet & certification
- Built
- 35
- Active
- 29
- Type
- Piston
- Origin
- US
1 for sale right now
Per-variant specifications
| Variant | Engine | MTOW | Range | Cruise | Pax |
|---|---|---|---|---|---|
C335 C335 | TSIO-520 SER | 2,700 kg | 1,000 nm | 169 kt | 6 |
The FAA paperwork
TCDS 3A25 · 25 · issued 1994-08-15
The FAA-issued Type Certificate for this model is on file (TCDS 3A25), but we haven't yet extracted the structured spec values.
Read the TCDS (PDF) →Where to look next
Other airframes worth a look
Free — save the 335 to your watchlist and track it in one place.
Cessna Aircraft Company 335 manuals & documents
6 documents for the Cessna Aircraft Company 335 — Airworthiness Directives · Avionics Manual · Performance Data · Flight Manual · Maintenance Manual · Systems Description. PDFs served from cdn.sprinkle.com.
This document serves as an Airplane Flight Manual Supplement for the Cessna 335, 340, and 340A aircraft models. It provides detailed information regarding the installation and operation of MT-Propeller's propeller systems, specifically the MTV-14-D-C-F/CF188-30g model. The manual outlines the specifications, advantages, and components included in the STC kit, which is designed for aircraft with piston engines rated up to 335 HP. This supplement is essential for pilots and maintenance personnel to understand the performance enhancements and operational characteristics of the new propeller system.
- The Cessna 335 is compatible with the MTV-14-D-C-F/CF188-30g propeller system.
- The maximum power rating for approved engines is 335 HP at 2700 RPM.
- The weight of two installed propellers with de-ice is 145.5 lbs (66.0 kg).
- The maximum propeller diameter is 74.0 inches (188 cm) and the minimum is 72.0 inches (183 cm).
- Performance enhancements include a 3% reduction in take-off distance and a 5% to 8% increase in climb performance.
Airworthiness Directives
Maintenance Manual
Systems Description
Documents are sourced from publicly available references. Sprinkle does not host OEM-restricted materials; if you are a rights-holder and want a document removed, email .

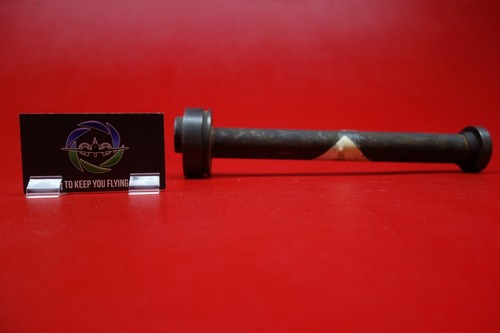

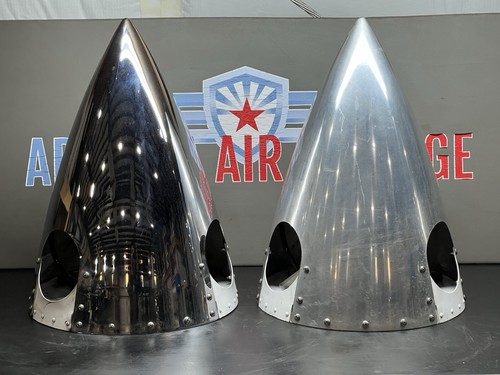

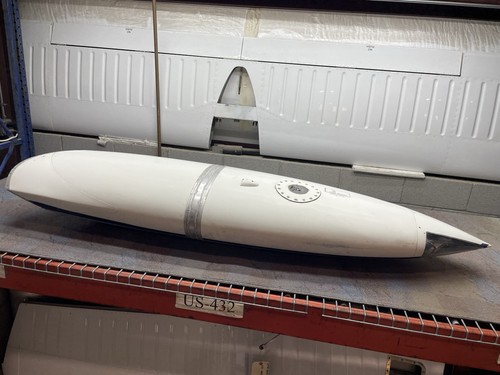

38 Cessna Aircraft Company 335 parts for sale
See all →
Parts listed for sale by vetted eBay sellers — confirmed on eBay at checkout.
Registered 335 aircraft
Individual 335 airframes by tail number — registration history, operator and lineage.
- N6867C1980
- C-GNWC1980
- N6674C1980
- N116JW1980
- C-FBVC1980
- N36N1980
- N802MC1980
- N335PC1980
- N6594C1980
- N2711N1980
- N335DD1980
- C-GBMB1980
- N2708Y1979
- N2002P1979
- N2704N1979
- N2705A1979
- N2705L1979
- N2706A1979
- N2706T1979
- N2708S1979
- N2708T1979
- N2709B1979
- N2710J1979
- N335KH1979
How many Cessna Aircraft Company 335 are there?
35 Cessna Aircraft Company 335 are on the worldwide civil registry, of which about 29 are active. This counts registered airframes, not total production.
What is the range of the Cessna Aircraft Company 335?
The Cessna Aircraft Company 335 has a range of about 1,000 nautical miles.
How fast is the Cessna Aircraft Company 335?
The Cessna Aircraft Company 335 cruises at around 169 knots.
What is the Cessna Aircraft Company 335's maximum take-off weight?
The Cessna Aircraft Company 335 has a maximum take-off weight of 2,700 kg.
How many seats does the Cessna Aircraft Company 335 have?
The Cessna Aircraft Company 335 is typically configured for up to 6 occupants.
What is the ICAO type designator for the Cessna Aircraft Company 335?
The Cessna Aircraft Company 335 uses ICAO type designator C335.
Is the Cessna Aircraft Company 335 type certified?
Yes. The Cessna Aircraft Company 335 holds a type certificate; you can read its Type Certificate Data Sheet (TCDS) and what each section means on Sprinkle.
