PA-14 — Piper Aircraft PA-14
Fleet & certification
- Built
- 128
- Active
- 111
- Origin
- US
Per-variant specifications
| Variant | Engine | MTOW | Range | Cruise | Pax |
|---|---|---|---|---|---|
PA14 PA14 | — | 800 kg | 435 nm | 96 kt | 2 |
Other models in this family
Where to look next
Other airframes worth a look
Free — save the PA-14 to your watchlist and track it in one place.
Piper Aircraft PA-14 manuals & documents
3 documents for the Piper Aircraft PA-14 — Service Bulletins · Systems Description. PDFs served from cdn.sprinkle.com.
This Service Memo No. 4 provides critical information regarding the brake and oleo strut system fluid usage for various Piper aircraft, including the Piper PA-14 Family Cruiser. It outlines the types of brake fluids compatible with different models and emphasizes the importance of using the correct fluid to avoid damage to the brake expander tubes. The memo also includes identification markings for fluid compatibility and recommendations for maintenance practices. This document is essential for maintenance personnel and pilots to ensure the safe operation of the aircraft's braking system.
- Use Lockheed #21 fluid (blue) for pre-1942 models with brakes; Univis #40 fluid (red or amber) for models from 1942 onwards.
- Identification markings on expander tubes are crucial: red for mineral/petroleum fluids, blue for vegetable fluids.
- Unmarked tubes should be treated as compatible with Lockheed #21 fluid to avoid damage.
- Master cylinders may have synthetic rubber cups requiring Univis #40 fluid; ensure compatibility before use.
- Using the wrong fluid can damage brake expander tubes, leading to safety hazards.
Documents are sourced from publicly available references. Sprinkle does not host OEM-restricted materials; if you are a rights-holder and want a document removed, email .

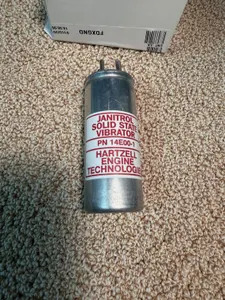

32 Piper Aircraft PA-14 parts for sale
See all →
Parts listed for sale by vetted eBay sellers — confirmed on eBay at checkout.
Registered PA-14 aircraft
Individual PA-14 airframes by tail number — registration history, operator and lineage.
- N5151H1966
- N4249H1952
- N143981949
- N5402H1949
- C-GNA1949
- N5184H1949
- N4648M1949
- C-FKBT1949
- N5188H1949
- N5195H1949
- C-FCDG1949
- N8476J1949
- N5194H1949
- N5191H1949
- N4291H1949
- N5183H1949
- N5407H1949
- N5130H1949
- N4207H1948
- C-FIXF1948
- N4208H1948
- C-FIFY1948
- N4206H1948
- N4209H1948
How many Piper Aircraft PA-14 are there?
128 Piper Aircraft PA-14 are on the worldwide civil registry, of which about 111 are active. This counts registered airframes, not total production.
What is the range of the Piper Aircraft PA-14?
The Piper Aircraft PA-14 has a range of about 435 nautical miles.
How fast is the Piper Aircraft PA-14?
The Piper Aircraft PA-14 cruises at around 96 knots.
What is the Piper Aircraft PA-14's maximum take-off weight?
The Piper Aircraft PA-14 has a maximum take-off weight of 800 kg.
How many seats does the Piper Aircraft PA-14 have?
The Piper Aircraft PA-14 is typically configured for up to 2 occupants.
What is the ICAO type designator for the Piper Aircraft PA-14?
The Piper Aircraft PA-14 uses ICAO type designator PA14.
