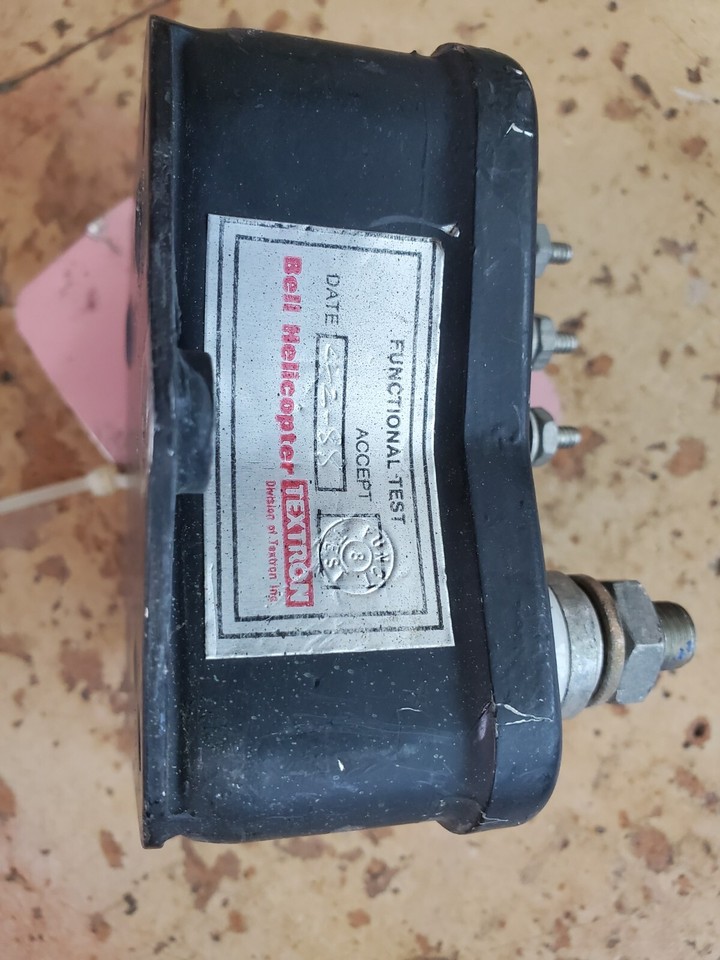

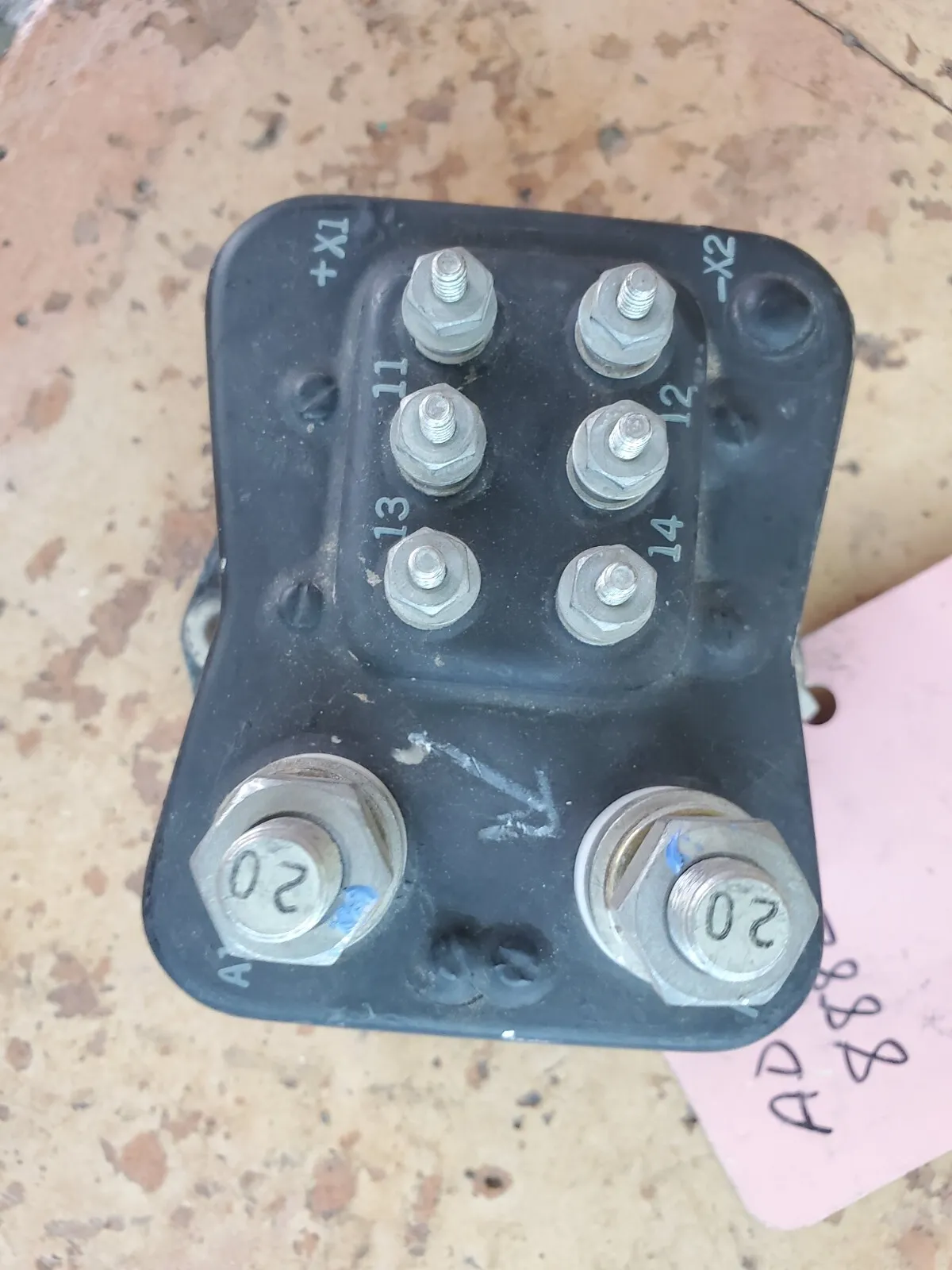

Bell Helicopter 406-075-846-101 Electromagnetic Relay 5945-01-186-3136

Item description from the seller

DUTY TYPE (APNP) CONTINUOUS CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH (ABKR) 2.990 INCHES MINIMUM SINGLE MOUNTING FACILITY AND 3.010 INCHES MAXIMUM SINGLE MOUNTING FACILITY COIL QUANTITY (APCN) 1 CUBIC MEASURE (CBME) 38.083 CUBIC INCHES FEATURES PROVIDED (CBBL) POLARIZED FREQUENCY IN HERTZ (AJSS) 400.0 NOMINAL MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS (CWAB) 29.0 DC MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE (CTDL) 300.0 AMPERES DC RESISTIVE LOAD OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP (CSXF) 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING OVERALL HEIGHT (ABKW) 2.740 INCHES MINIMUM AND 2.843 INCHES MAXIMUM OVERALL LENGTH (ABHP) 3.620 INCHES MINIMUM AND 3.680 INCHES MAXIMUM OVERALL WIDTH (ABMK) 3.640 INCHES MAXIMUM MOUNTING FACILITY PATTERN (CQYJ) IN-LINE SINGLE MOUNTING FACILITY MOUNTING FACILITY TYPE AND QUANTITY (AXHR) 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY NONPILE-UP AUXILIARY CONTACT ARRANGEMENT (CSKP) 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION AND 1 POLE, SINGLE THROW, NORMALLY CLOSED, DOUBLE BREAK, MOMENTARY ACTION NONPILE-UP MAIN CONTACT ARRANGEMENT (CRNG) 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION TERMINAL TYPE AND QUANTITY (TTQY) 8 THREADED STUD ALL FUNCTIONS UNTHREADED MOUNTING HOLE DIAMETER (AEBV) 0.266 INCHES MINIMUM SINGLE MOUNTING FACILITY AND 0.272 INCHES MAXIMUM SINGLE MOUNTING FACILITY WINDING QUANTITY (AKDX) 1 III CUBIC MEASURE (CBME) 38.083 CUBIC INCHES A3A
