x100 Aeronautical Standard 11/16 MACHINE SCREW Aircraft/Aviation AN525-10R11 NEW

Item description from the seller

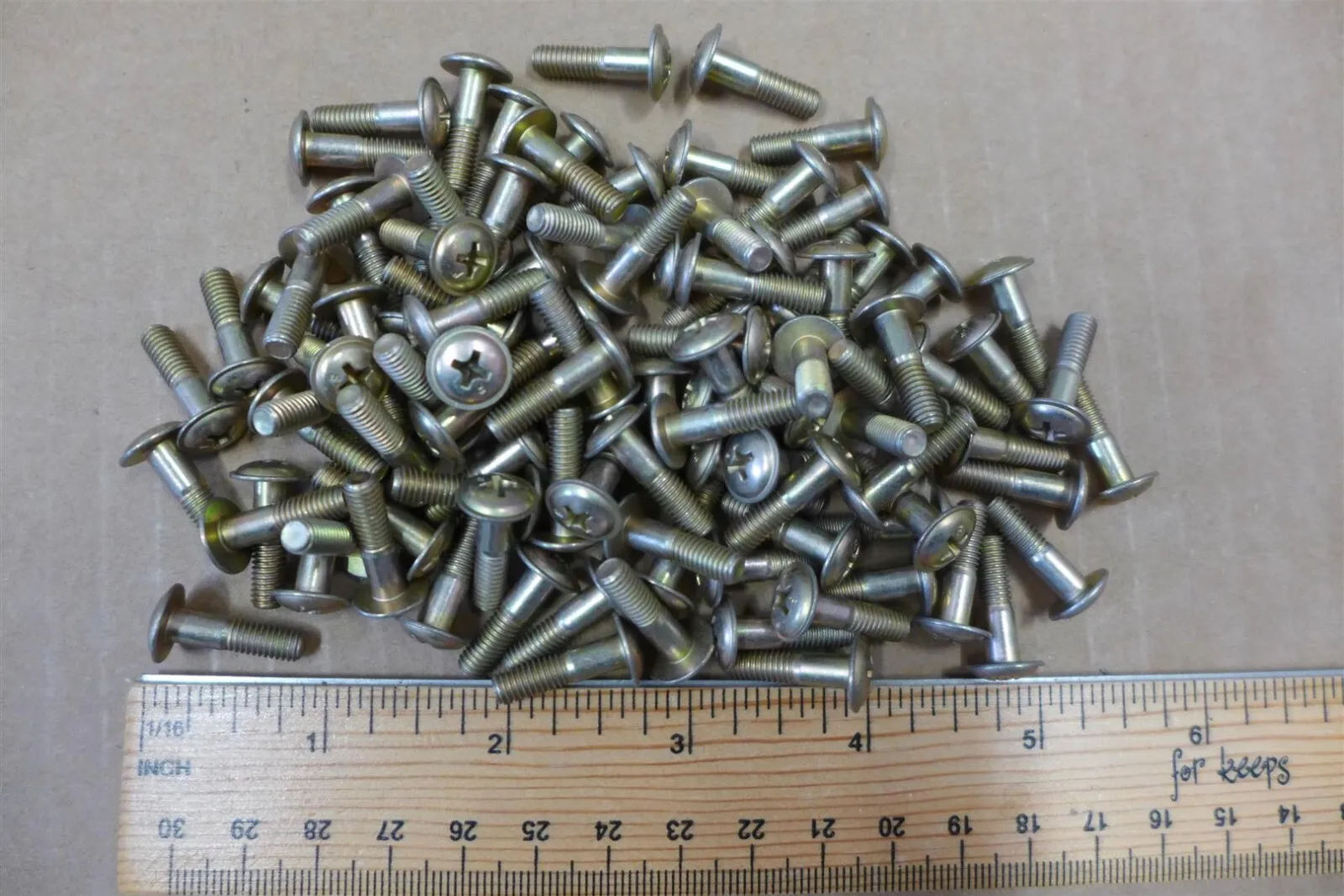

x100 Aeronautical Standard 11/16" MACHINE SCREW Aircraft/Aviation AN525-10R11 NEW Specs listed at the bottom of page. Take a look at the pictures for exactly what you will receive. I am selling many other small aviation parts on eBay currently. Shipping cost for each ADDITIONAL item is $1.00 (within the U.S.) Pickup is always free in Bellingham, WA SPECS: length: 11/16", grip: 9/32", thread: 10-32, cadmium plated steel, philips recess, AN525 series screw Thread Direction: Right-hand Thread Length: Between 0.396 inches and 0.453 inches Thread Diameter: 0.190 inches Thread Class: 3a Screw Surface Treatment: Cadmium or zinc Screw Surface Treatment Specification: Cl 3 federal specification 2nd treatment response type 2 cl 3 federal specification 1st treatment response or qq-z-325 type 2 qq-p-416 Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response Screw Material: Steel comp 8630 or steel comp 4037 Min. Tensile Strength (psi): 125000 pounds per square inch Head Style: Round extended washer Internal Drive Style: Cross recess type 1 Head Diameter: Between 0.365 inches and 0.385 inches Head Height: Between 0.089 inches and 0.099 inches Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c Fastener Length: Between 0.656 inches and 0.719 inches Extended Washer Thickness: Between 0.025 inches and 0.030 inches Extended Washer Diameter: Between 0.427 inches and 0.447 inches Thread Qty Per Inch (tpi): 32 Thread Series Designator: Unf (fine thread)
