North Atlantic Apex VME 64DS1-8CSB40-01 Digital-to-Synchro/ Resolver (Rev. E) #2

Item description from the seller

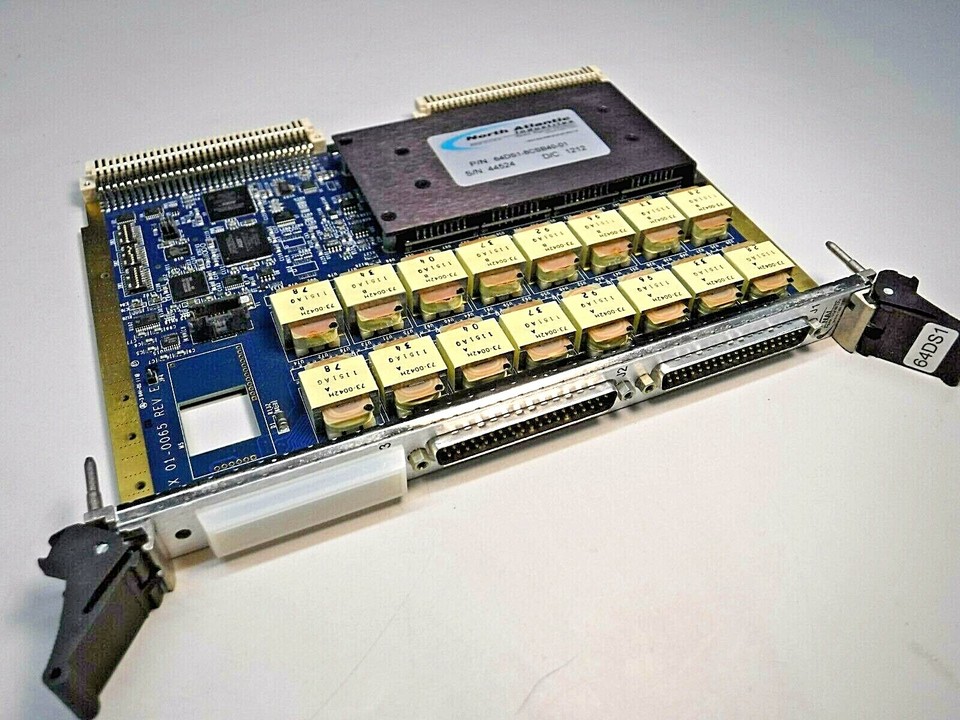

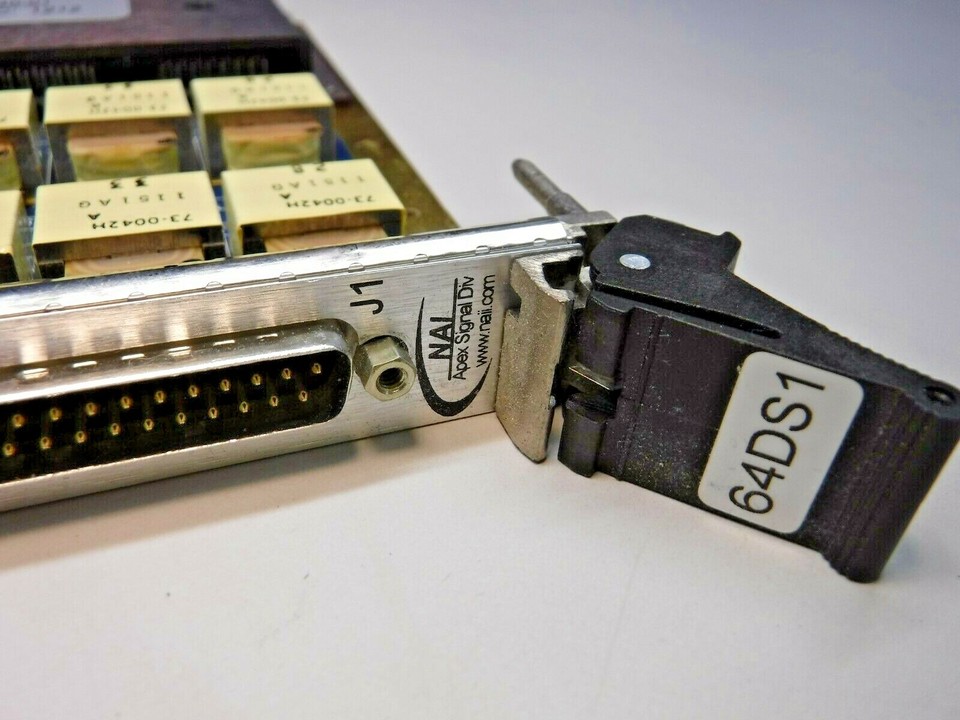

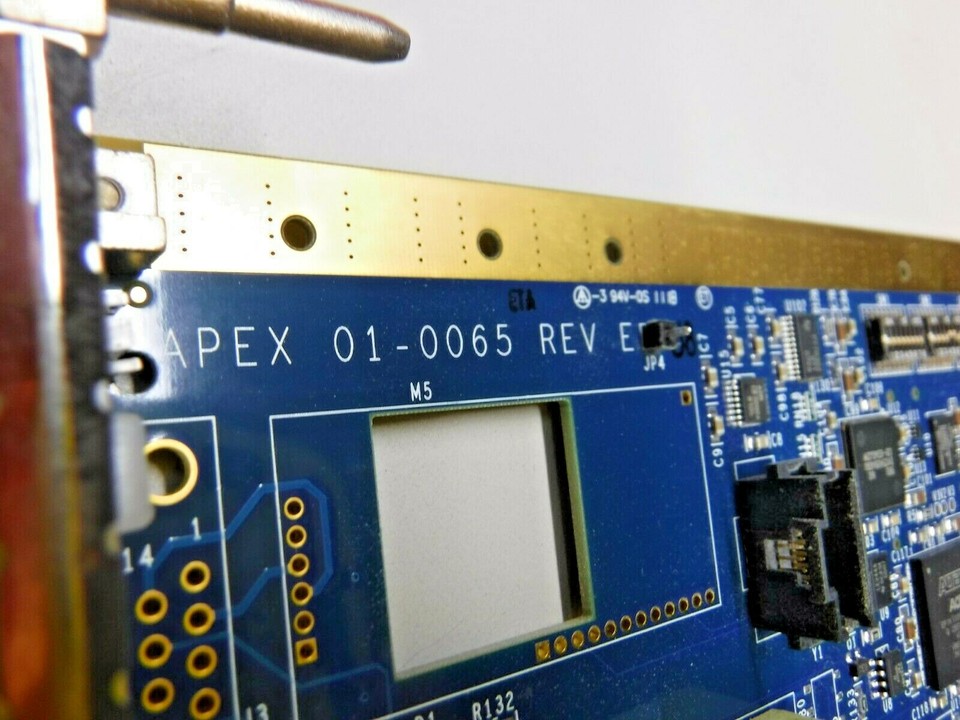

North Atlantic Industries Apex Signal Division VME  64DS1-8CSB40-01  Digital-to-Synchro/Resolver (Rev. E) #2 Two-Speed or Single-Speed or Combination (Programmable), 16-Bit Resolution, Wrap-Around Self-Test, Programmable Rotation 8 D/S Channels, 0-70˚C, Format: Synchronous, Mechanical: VME64 Front Panel With Front Panel I/O & P2 I/O Options 01: Without On-Board Reference -  Individual Reference Inputs, Options 02: None Output: 11.8 VL-L, Ref: 26 Vrms, Frequency: 400 Hz, Load: 1.2 VA D/C: 1212, S/N: 44524 FEATURES: • 16-Bit Resolution • 30 Arc-Seconds Accuracy • Continuous Background BIT Testing With Reference And Signal Loss Detection • Power-On Self-Test (POST) • Programmable 2-Speed Ratios (2 To 255) And Angle Rotation • Outputs Can Be Turned ON/OFF • Redundant Operation Available (Contact Factory) • 360 Hz To 10 kHz Operations • Optional On-Board Programmable Reference Supply • Transformer Isolated • Watchdog Timer And Soft Reset • 8, 6, 4 And 2-Channel Versions Available • Either A32, A24 or A16 Address • Geographical Addressing • I/O Via Front Panel, P2, or Both • No Adjustments or Trimming Required • Part Number, S/N, Date Code, & Revision In Non-Volatile Memory For Commercial And Military Applications,  Removed From Working Test Equipment, NOT Tested, 30-Day Warranty Condition: Used Item: 2008-015 Location: 6701B-2 **Shipping** All Customers:   We can use   your FedEx or UPS account to ship via the method and speed you request. Prior to paying, contact us to arrange it. Orders placed after 12:00 Noon CST on Friday may not be shipped until Monday. If you have expedited needs contact us prior to paying and we will assist you as best as we can. International Customers:   We can ship anywhere in the world as allowed.  We have it set defau
