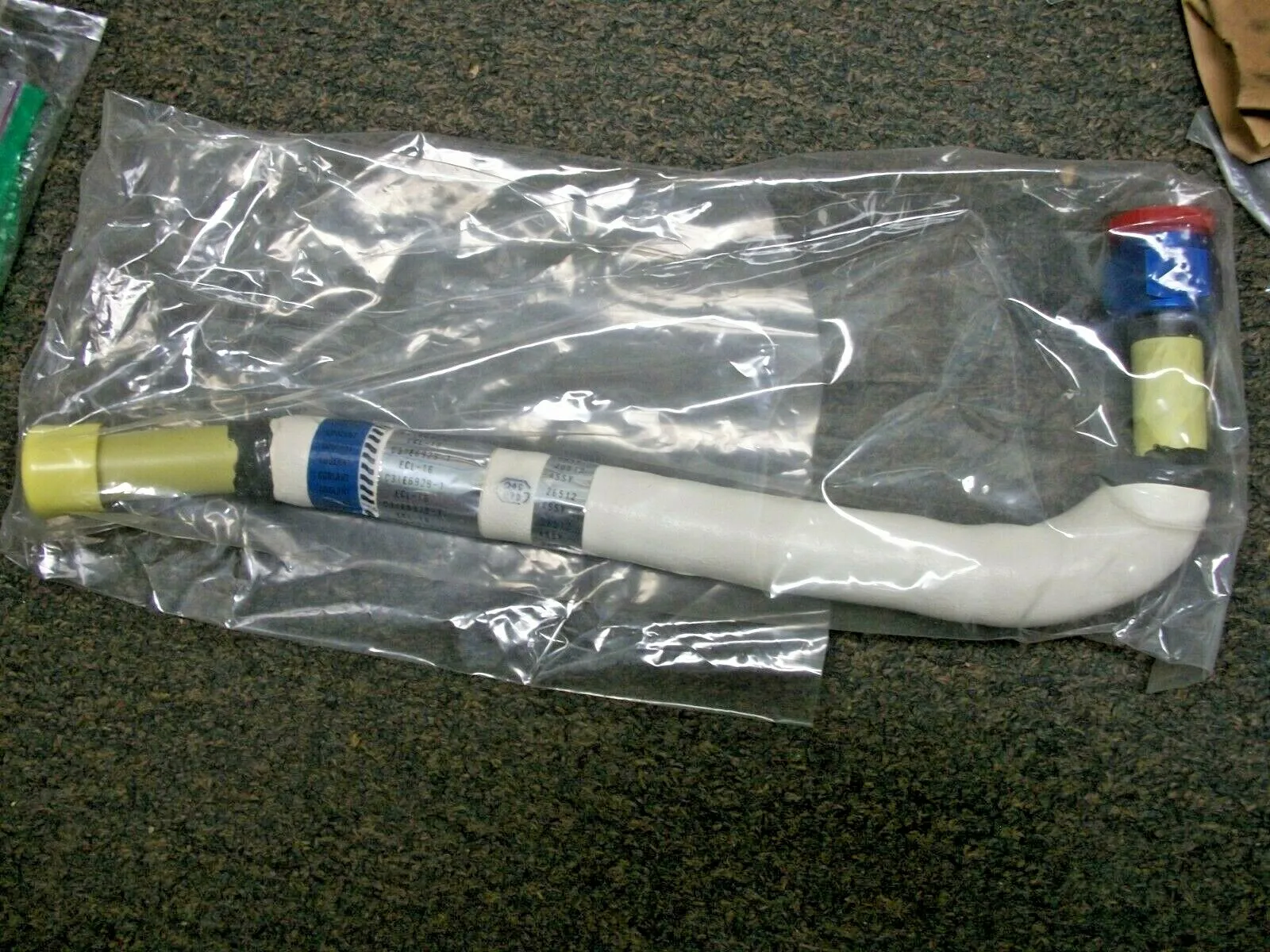

Northrup Grumman Systems Metal Coolant Tube Assembly C31E6929-1 4710-01-120-6534

Item description from the seller

20S3.0622 Only for sale to USA buyers. Cannot export. 4710-01-120-6534 4710 011206534 Tube Assembly, Metal AAGT Wall Thickness 0.049 inches nominal AAJD Thread Class 3B first end AAJF Thread Direction Right-hand first end AFQW Mating End Quantity 1 first end AFQW Mating End Quantity 1 second end AHSA Tubing Material Aluminum alloy, WW-T-700/4, alloy 5052 AJFX End Connection Style Plain second end AJFX End Connection Style Swivel nut, flared first end AJFY Seat Angle in DEG 33.0 first end ARJD Design Form Prebent BBYQ Tube Outside Diameter 1.000 inches nominal BZRS End Connection Spec/STD AN818-16D, MS20819-16, fscm 26512 P/N GC550KJ16F CQJX Nominal Thread Size 1.312 inches first end MATT Material Aluminum alloy first end MATT Material Aluminum alloy second end C31E6929-1 26512 Northrop Grumman Systems Corporation
