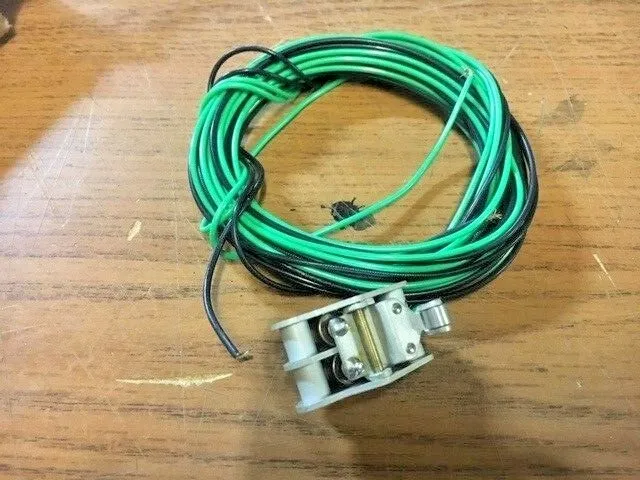

10AT424-43-10 SENSITIVE SWITCH AVIATION C-5 GALAXY AIRCRAFT

Item description from the seller

10AT424-43-10 SENSITIVE SWITCH AVIATION C-5 GALAXY AIRCRAFT NEW SURPLUS NO INTERNATIONAL SHIPPING BODY STYLE HOLE MOUNTED CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 0.997 INCHES MINIMUM AND 1.003 INCHES MAXIMUM OVERALL HEIGHT 1.237 INCHES MAXIMUM OVERALL WIDTH 0.755 INCHES MAXIMUM BODY WIDTH 0.755 INCHES MAXIMUM UNTHREADED MOUNTING HOLE DIAMETER 0.140 INCHES MINIMUM AND 0.144 INCHES MAXIMUM ACTUATOR STYLE ROLLER ARM ACTUATOR FREE POSITION HEIGHT 0.687 INCHES MAXIMUM ACTUATOR ROLLER DIAMETER 0.209 INCHES MINIMUM AND 0.213 INCHES MAXIMUM ACTUATOR ROLLER WIDTH 0.154 INCHES MINIMUM AND 0.158 INCHES MAXIMUM MAXIMUM VOLTAGE RATING IN VOLTS 110.0 AC AND 28.0 DC INCLOSURE TYPE FULLY INCLOSED MOUNTING METHOD UNTHREADED HOLE NONPILE-UP CONTACT ARRANGEMENT 2 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION SINGLE SWITCH UNIT SWITCH RELEASE FORCE 4.0 OUNCES MINIMUM SWITCH ACTUATING FORCE 48.0 OUNCES MAXIMUM ACTUATOR MOVEMENT 0.015 PRETRAVEL INCHES MINIMUM AND 0.040 PRETRAVEL INCHES MAXIMUM AND 0.125 OVERTRAVEL INCHES MINIMUM AND 0.040 DIFFERENTIAL INCHES MAXIMUM CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 7.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 2.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 3.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC TERMINAL TYPE AND QUANTITY 4 WIRE LEAD SPECIFICATION/STANDARD DATA 81349-MIL-S-83731/10 GOVERNMENT SPECIFICATION
