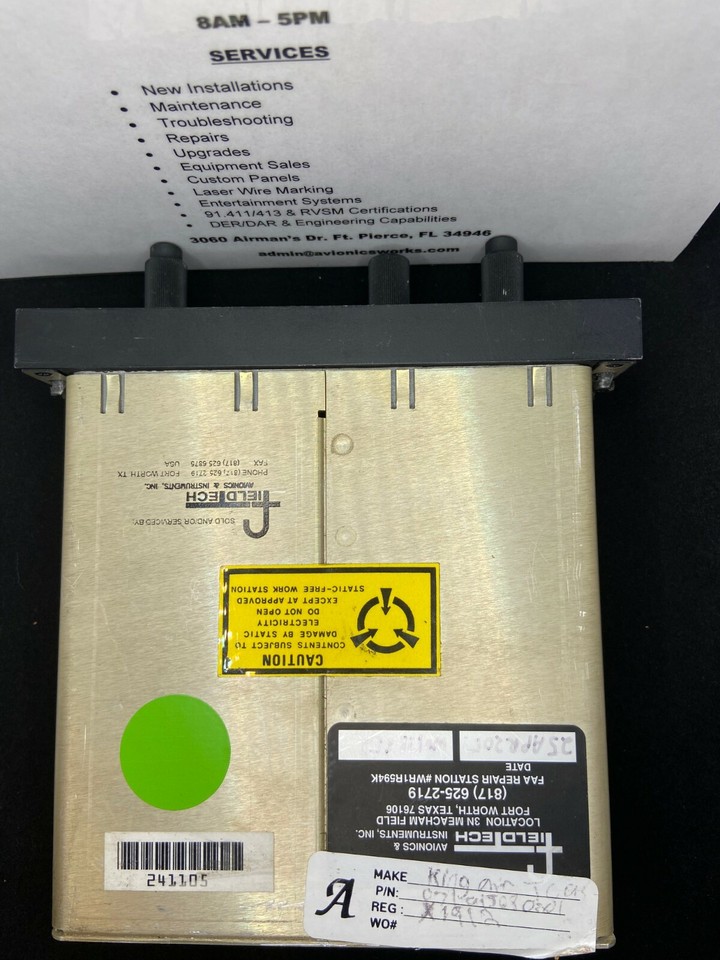

BendixKing CP 66B TCAS Control Panel (PN# 071-01568-0201)

Item description from the seller

CP-66B FEATURES Digital control that provides control of CAS-66A TCAS I System Interfaces various external discrete inputs and supplies ARINC 429 and control signals necessary for operation of TCAS I system DZUS mounted Range control (RNG) to select range on traffic display (in nautical miles) Flight Level (FL) control repalces intruder's relative altitude with absolute altitude in flight level format for 15 seconds ABOVE/NORMAL/BELOW control selects altitude display limits Test (TST) switch initiates comprehensive system self test lasting approximately 12 seconds Standy (SBY) control places TCAS in standby Power (PWR) control turns system ON or OFF AUTO mode automatically displays available traffic on MFD MANUAL mode displays available traffic only when TCAS is selected on EFIS controller Lamps can be powered by either 5V or 28VDC Black bezel Dimming annunciator SPECIFICATIONS SIZE: 5.74"W x 1.87"H x 5.36"L WEIGHT: 1.3 lbs. INPUT POWER: 28 VDC; 3560mA, 10 watts LIGHTING: 5Vdc, 5Vac 400Hz or 28Vdc TEMPERATURE: -35 to 55C DATA OUTPUT: Low-speed ARINC 429 COOLING: no forced cooling required TSO: C118 PART NUMBER TCAS I CONTROL DESCRIPTION: 071-01568-0201 Black, With Range Selector, Without T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
