1/4" NUTPLATE MS21069L4 / MK1000-4 - AIRCRAFT / AVIATION - Pack of 25

Item description from the seller

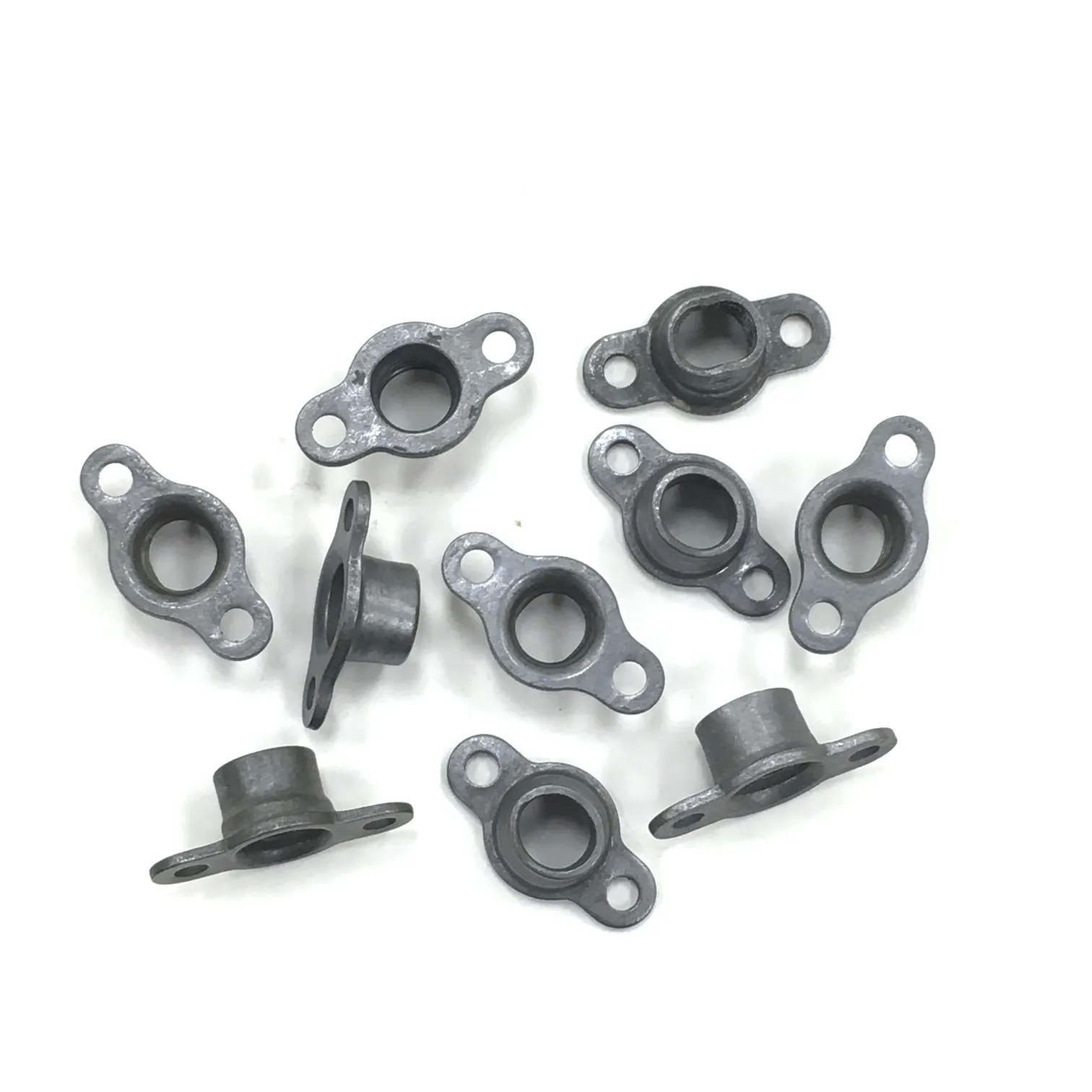

This listing is for 25 brand new 1/4" NUTPLATES P/N: MS21069L4 - MK1000-4 Technical Data | NSN 5310-00-728-7717 Characteristic Specifications THREAD SERIES UNJF NOMINAL THREAD SIZE 0.250 INCHES THREAD QUANTITY PER INCH 28 THREAD CLASS 3B THREAD DIRECTION RIGHT-HAND MATERIAL STEEL OVERALL SURFACE TREATMENT CADMIUM OVERALL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL HARDNESS RATING 49.0 ROCKWELL C MAXIMUM NUT STYLE A116 PLATE NUT LENGTH 0.786 INCHES MAXIMUM NUT HEIGHT 0.281 INCHES MAXIMUM PLATE THICKNESS 0.055 INCHES MAXIMUM PLATE WIDTH 0.380 INCHES MINIMUM AND 0.414 INCHES MAXIMUM LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN LUBRICATION DRY FILM LUBRICANT NUT MOUNTING PROVISION STRAIGHT HOLES MOUNTING HOLE ARRANGEMENT STYLE F38 2 HOLES MOUNTING HOLE DIAMETER 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.281 INCHES NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM TEMP RATING 450.0 DEG FAHRENHEIT NOMINAL GREAT DEAL!! Shipping: Orders usually ship out in 1-2 business days. International shipping usually takes from 7 to 14 business days to arrive at final destination. THANK YOU!
