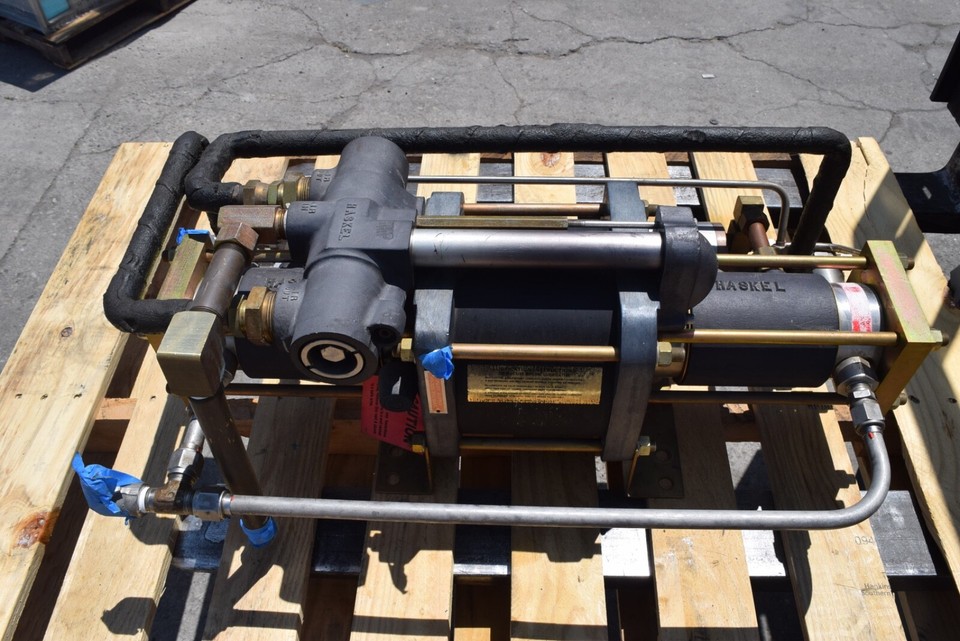

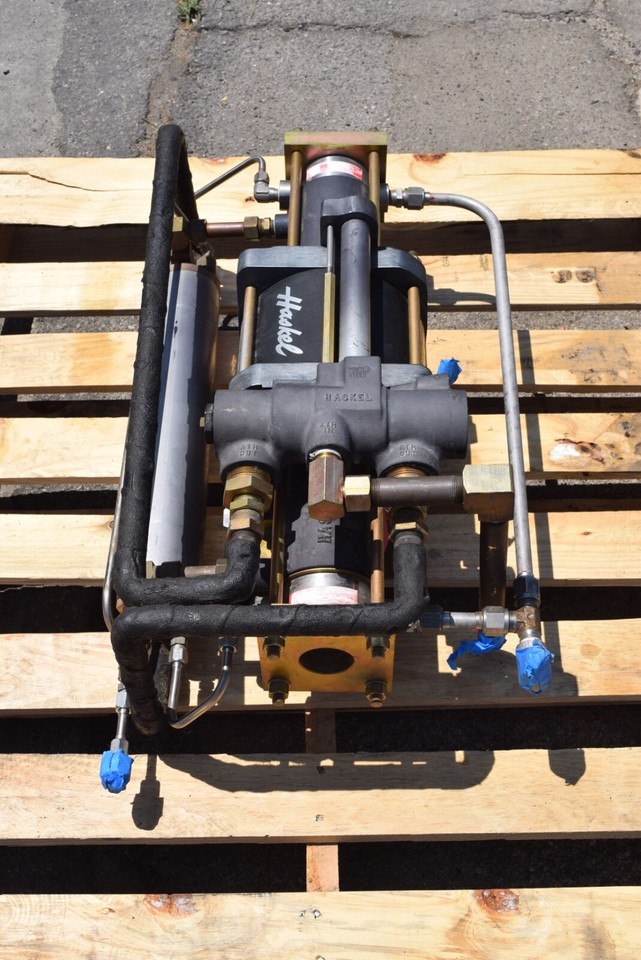

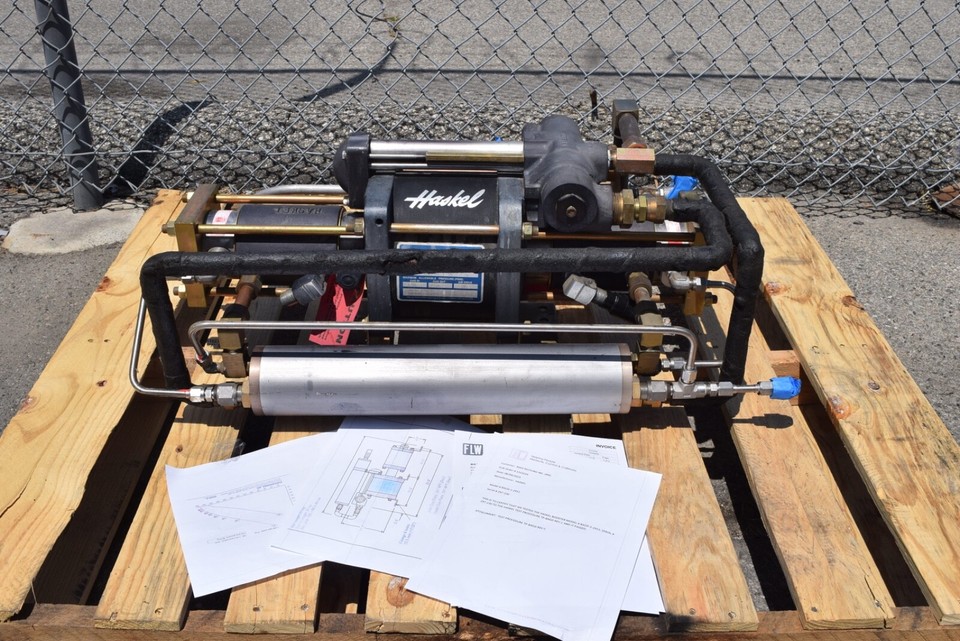

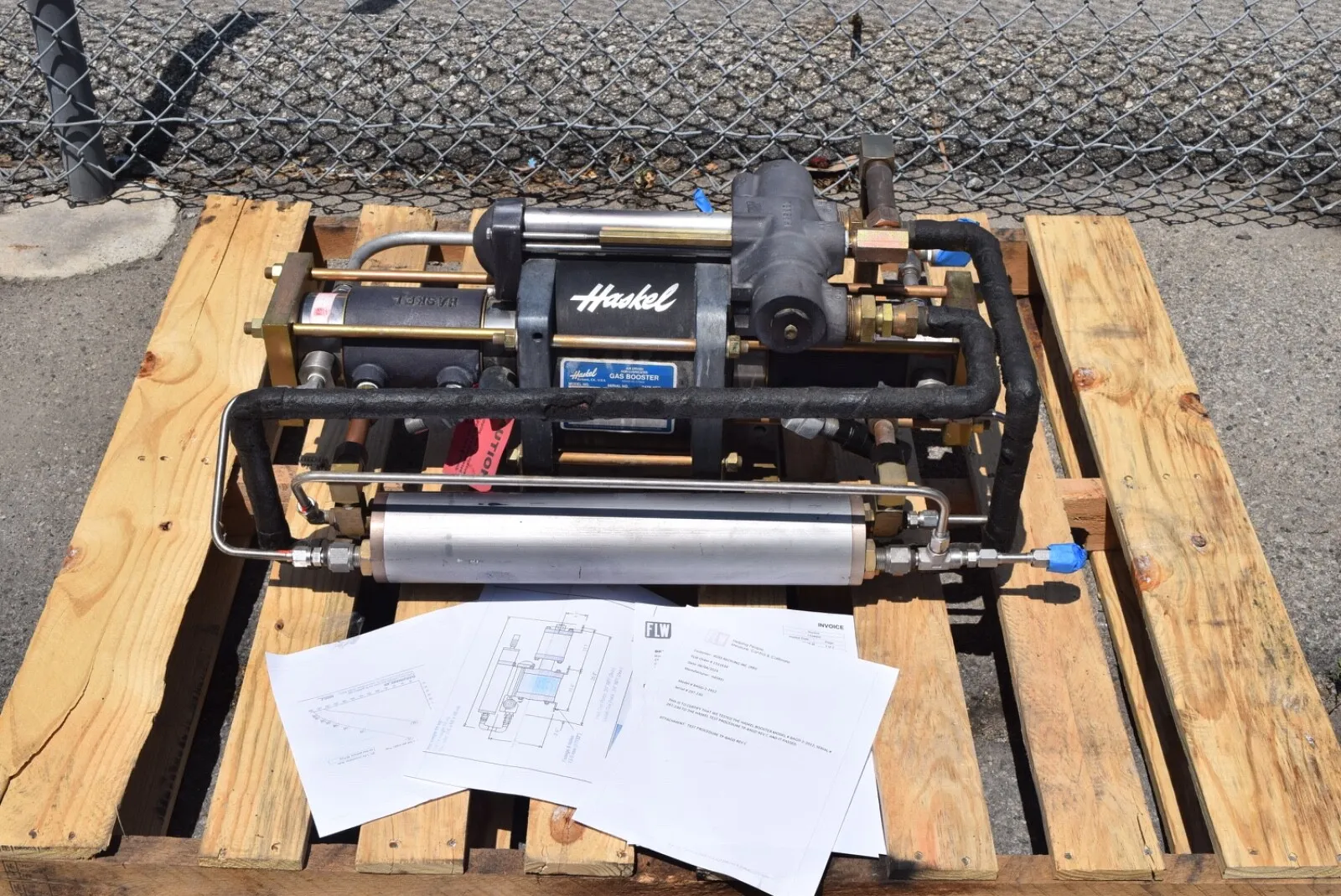

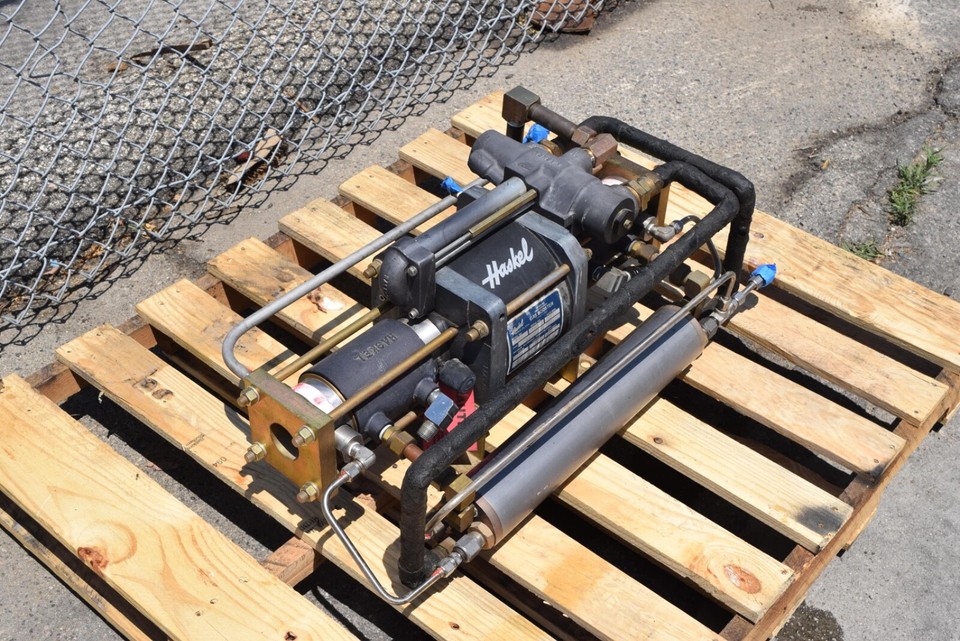

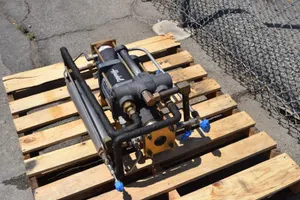

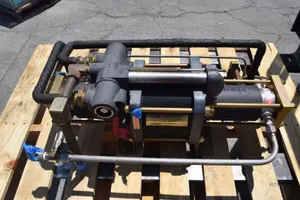

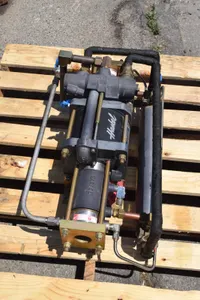

Haskel Mdl 8AGD-5 Air-Driven Gas Booster TESTED GOOD 0.E.M. FACILITY 6/24 CERTS

Item description from the seller

Haskel Model 8AGD-5 Air-Driven Gas Booster With a nominal pressure ratio of 5:1, the Haskel model 8AGD-5 8″ Double-Acting, Single Stage Gas Booster utilizes air pressure to boost gas pressures to a maximum of 2500 psi PSIG. Features & Benefits: Reliable, easy to maintain, compact and robust No heat, flame or spark risk Infinitely variable cycling speed and output Pneumatic driven units do not require electrical connections Easy to apply automatic controls No limit or adverse affect to continuous stop/start applications Seal systems designed for long working life No air line lubricator required Hydrocarbon free – separation between air and gas sections Built-in cooling (most models) Suitable for most gases Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat Technical Data: Ratio: 5:1 Min GAS supply pressure: 50 psi Max GAS supply pressure: 2500 psi Max rated GAS outlet pressure: 2500 psi Static outlet stall pressure formula: 5 Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure) Min AIR drive pressure: 20 psi Max AIR drive pressure: 130 psi Sample Performance Characteristics: Boost 12 SCFM Gas from 100 psi to 500 psi while using 65 SCFM Air @ 90 psig supply pressure Boost 37 SCFM Gas from 300 psi to 700 psi while using 65 SCFM Air @ 90 psig supply pressure Boost 66 SCFM Gas from 450 psi to 800 psi while using 70 SCFM Air @ 90 psig supply pressure Boost 96 SCFM Gas from 600 psi to 900 psi while using 70 SCFM Air @ 90 psig supply pressure Physical Characteristics: Unit weight: 121 LBS. Displacement / cycle: 71.4 cu. in. Max cycles: 50/min. GAS inlet/outlet connections: 3/4″ FNPT inlet; 1/2″ FNPT outlet AIR drive inlet port: 3/4″ FNPT
