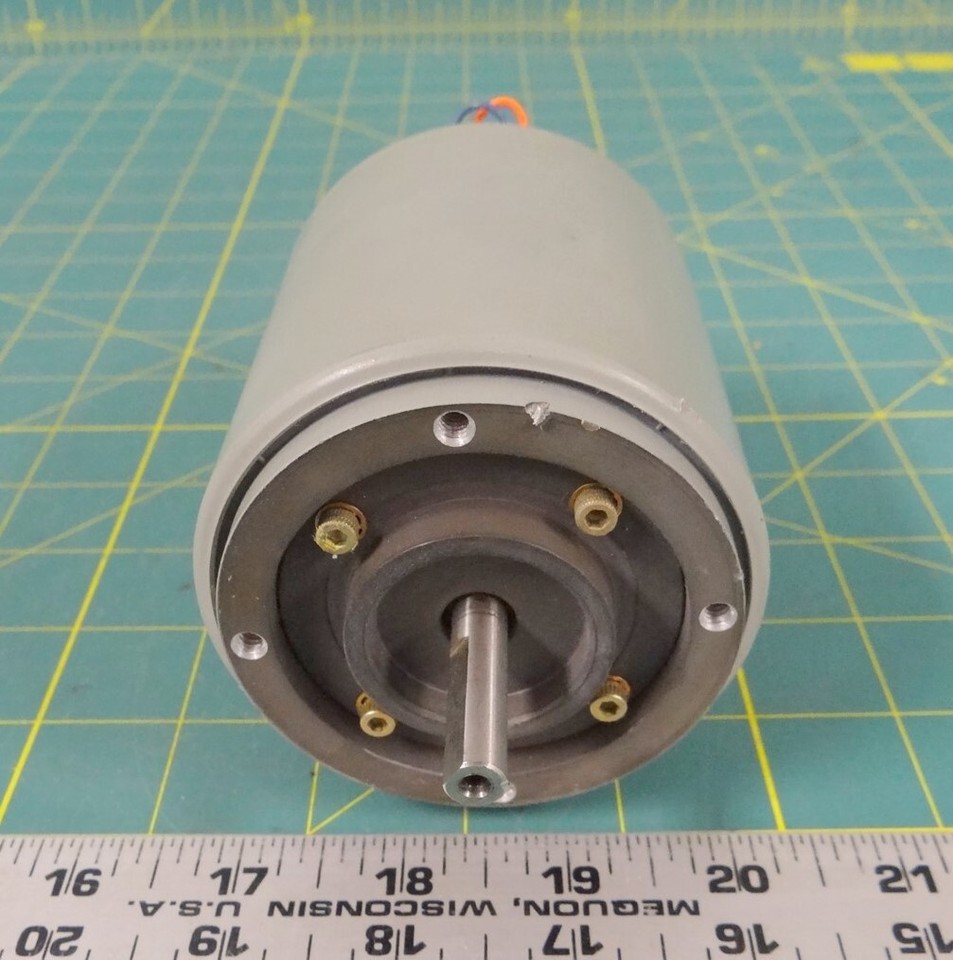

Eastern Air Devices Aircraft N6A4 Tachometer Generator 6680-00-316-9523 2152820
About this item
Item specifics
- Make
- Other
- Type
- Instruments & Gauges
- Brand
- Eastern AIR DEVICES
- Part number (MPN)
- N6A4
- GTIN
- Does Not Apply
- Country of Origin
- United States
- Bundle Listing
- No
- NSN
- 6680-00-316-9523
- Alternate Part number
- 2152820
Item description from the seller
Eastern Air Devices Aircraft Tachometer Generator Part # N6A4 Alt part # 2152820 NSN 6680-00-316-9523 Specifications: OVERALL HEIGHT: 3.312 INCHES OVERALL LENGTH: 6.187 INCHES OVERALL WIDTH: 3.312 INCHES ELECTRICAL RESISTANCE: 50.0 OHMS SHAFT DIAMETER: 0.3120 INCHES NOMINAL SINGLE END FLATTED PORTION LENGTH: 1.0000 INCHES NOMINAL SINGLE END CURRENT TYPE: AC OUTPUT FLAT DEPTH: 0.0312 INCHES NOMINAL SINGLE END SHAFT ROTATION DIRECTION: CLOCKWISE OR SHAFT ROTATION DIRECTION: COUNTERCLOCKWISE SINGLE END MOUNTING METHOD: FACE MOUNTING FACILITY TYPE AND QUANTITY: 4 THREADED HOLE ACCURACY RANGE IN PERCENT: -5.0 TO 5.0 CALIBRATION SPEED IN RPM: 5000.0 CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS: 45.0 AC FEATURES PROVIDED: HORIZONTAL MOUNTING POSITION AND FEATURES PROVIDED: VERTICAL MOUNTING POSITION LENGTH OF SHAFT FROM HOUSING: 1.125 INCHES SINGLE END MOUNTING FACILITY CIRCLE DIAMETER: 2.625 INCHES ROTOR SPEED RATING IN RPM: 1000.0 LOW FULL LOAD AND ROTOR SPEED RATING IN RPM: 5000.0 HIGH FULL LOAD CURRENT RATING IN AMPS: 0.500 SINGLE OUTPUT CONNECTION TYPE AND VOLTAGE RATING IN VOLTS: 45.0 LINE TO NEUTRAL SINGLE OUTPUT SHAFT END CHARACTERISTIC: A5 SINGLE STYLE SINGLE END MANUFACTURERS CODE: 28527 DESIGN CONTROL REFERENCE: 2152820 TERMINAL TYPE AND QUANTITY: 2 WIRE LEAD This is a government surplus parts that have some wear on the outer case from storage. xxqxx02 Powered by SixBit's eCommerce Solution
