- Total time
- 2,109 hr
- Year
- 2010
- Serial
- C0575
- Location
- Sydney, Australia
Specifications
Airframe
- Total time ·
- 2,109 hr
- MSN ·
- C0575
- Seats ·
- 2
- Registry ·
- New Zealand
Powerplant
- Engine ·
- CONTINENTAL
- Engine 1 SMOH ·
- 853 SNEW
Performance (across variants)
- Range ·
- 520 nm
- Cruise ·
- 120 kt
- Service ceiling ·
- 14,000 ft
- MTOW ·
- 700 kg
- Passengers ·
- Up to 2
Avionics equipment
- Aspen Electronic
- Garmin
Condition
Used
Avionics
AVIONICS Aspen electronic flight display (EFD) Garmin GTX 33X ADS-B Mode S transponder VHF COM radio and intercom Full analogue flight instruments Artex 406 MHz ELT Engine instrumentation cluster Transponder and static system checks February 2026 24-month avionics check completed February 2026 Mode S address code current to 2028
Description

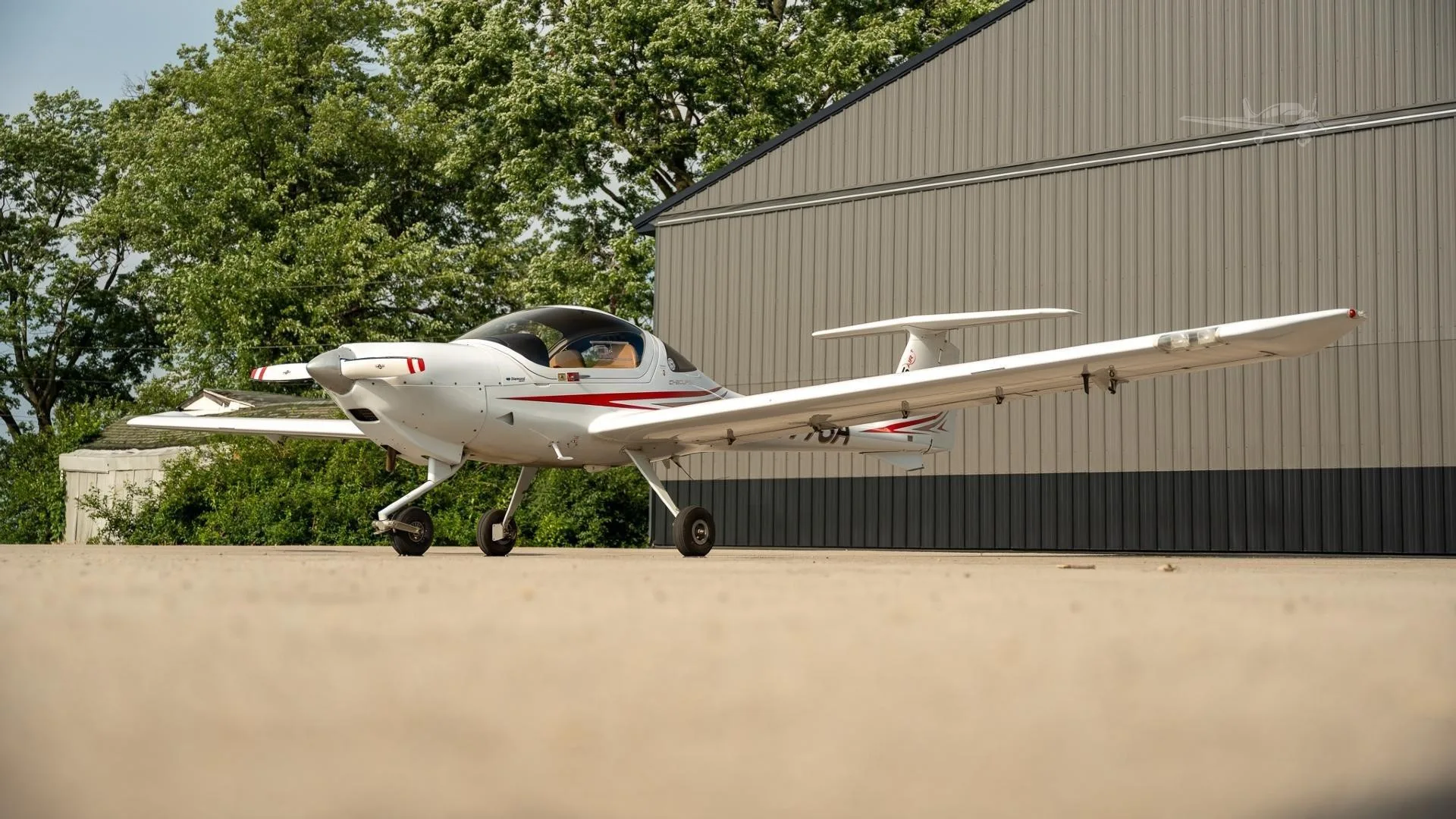

This 2010 Diamond DA20-C1 Eclipse (registration ZK-WUJ) is a low-time example of the world's favourite composite two-seat trainer. With just 2,109 airframe hours and a factory-new Continental IO-240-B fitted in December 2022 – only 853 hours since new against a 2,400-hour TBO – it offers an affordable and economical entry into Diamond ownership. The DA20-C1 pairs a carbon-fibre composite airframe and bubble canopy with crisp, responsive handling and remarkably low operating costs. The panel combines an Aspen electronic flight display with a Garmin GTX 33X ADSB Mode S transponder and a 406 MHz ELT, while the MT two-blade propeller carries a 10,000-hour life with over 7,800 hours remaining. Maintained to the manufacturer's maintenance program by the New Zealand International Commercial Pilot Academy (NZICPA), it is ideally suited to flight training, time building or affordable private flying. HIGHLIGHTS This tidy DA20-C1 Eclipse, finished in white with blue accents and a tan leather interior, offers genuinely low airframe and engine hours: • Factory-new Continental IO-240-B fitted December 2022 – 853 hrs since new • 2,400 hr engine TBO – over 1,540 hrs remaining • Airframe total time just 2,109 hrs • Garmin GTX 33X ADS-B Mode S transponder • Aspen electronic flight display • MT propeller with over 7,800 hrs of life remaining • Bubble canopy with outstanding visibility • Maintained to Diamond's maintenance program by NZICPA AIRFRAME AND POWERPLANT Total Hours Since New 2,109 Serial Number C0575 Registration ZK-WUJ Continental IO-240-B 125 HP fuel-injected engine Factory-new engine fitted December 2022 (853 hrs since new) 2,400 hr engine TBO – over 1,540 hrs remaining MT 2-blade propeller – 10,000 hr life, 7,891 hrs remaining Magnetos replaced October 2025 New fuel pump fitted December 2024 New starter vibrator battery fitted March 2025 Carbon-fibre composite airframe Bubble canopy with outstanding visibility Two-seat side-by-side cockpit Tan leather-trimmed interior Fixed tricycle undercarriage CO detector fitted
