- Year
- 1986
Specifications
Airframe
- Seats ·
- 4
Performance (across variants)
- Range ·
- 1,080 nm
- Cruise ·
- 247 kt
- Service ceiling ·
- 32,000 ft
- MTOW ·
- 2,800 kg
- Passengers ·
- 1 as configured (up to 6 across variants)
Avionics equipment
- Aspen 1000
- Garmin
- S-Tec 60
Avionics
Garmin, Aspen 1000, S-Tec 60
Description

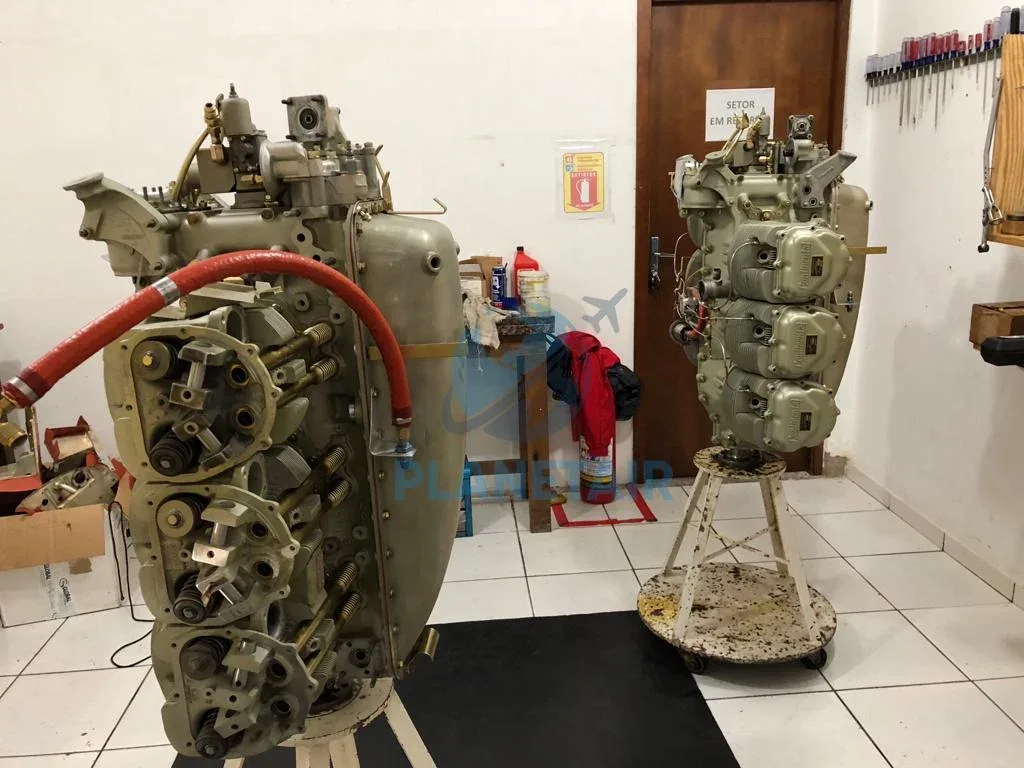

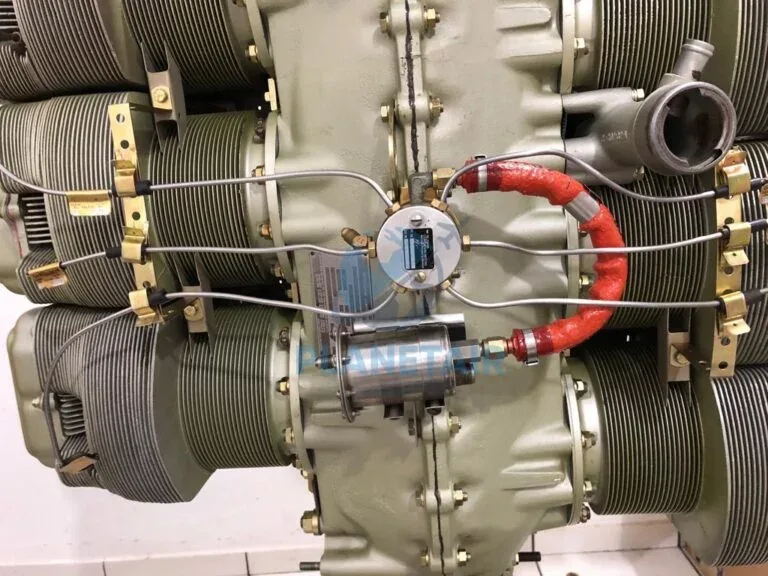

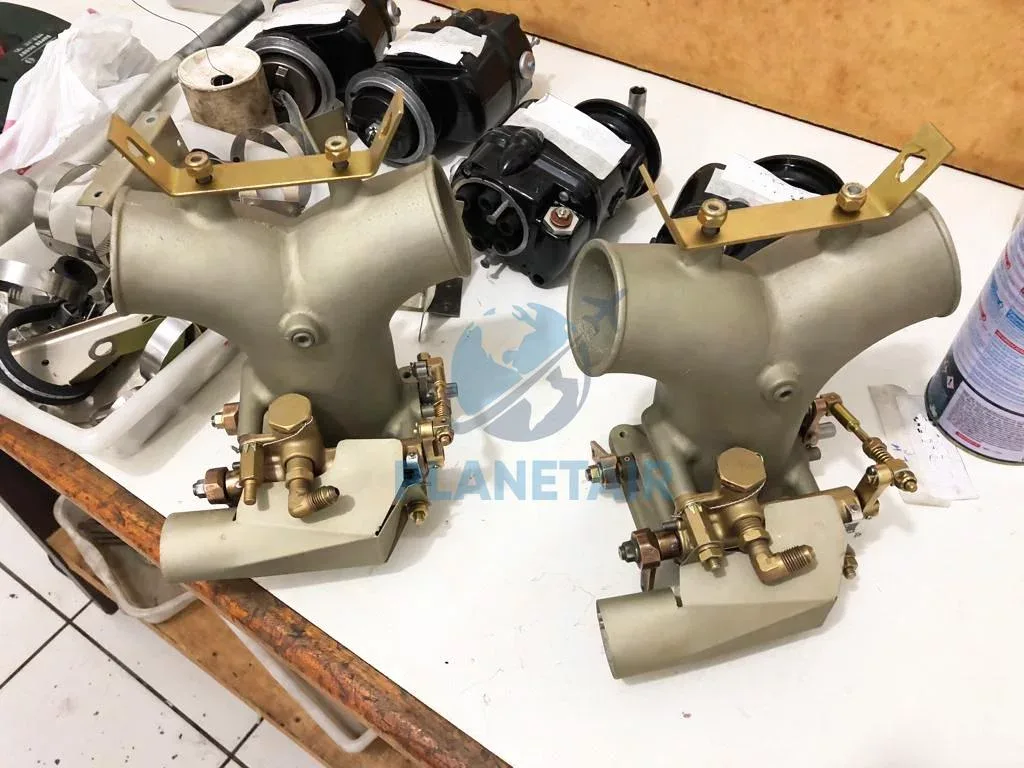

Visão geral Especificações Visão geral Motores novos. Helice revisada. Sem ar condicionado Equipamentos: 3 horizontes SL40 Nav: Com Garmin GMA 340 GNS 430 GPS 496 330 VHF VOR ILS Transponder Garmin GTX 327 Radar acoplado em GMX 200 Diretor de voo Aspen 1000 Piloto automático S-Tec 60 Janelas com filtro solar Tanque 166gl Especificações Exterior Exterior Height: 9 ft 9 in Wing Span: 37 ft 10 in Length: 29 ft 10 in External Baggage: 46 cu ft Interior Cabin Height: 4 ft 1 In Cabin Width: 3 ft 6 In Cabin Length: 10 ft 7 In Cabin Volume: 150 cu ft Door Height: 3 ft Door Width: 3 ft Occupancy Crew: 1 Passengers: 4-5 Operating Weights Max T/O Weight: 5400 Lb Max Landing Weight: 5400 Lb Operating Weight: 4060 Lb Empty Weight: 4000 Lb Fuel Capacity: 1164 Lb Payload W/Full Fuel: 300 Lb Max Payload: 1464 Lb Range Normal Range: 1013 nm Max Range: 1276 nm Service Ceiling: 20668 ft Distances Takeoff Distance: 2300 ft Balanced Field Length: 2300 ft Landing Distance: 2500 ft Performance Rate of Climb: 1,735 fpm Climb Rate One Engine Inop: 390 fpm Max Speed: 200 kts Normal Cruise: 197 kts Economy Cruise: 163 kts Cost per Hour: $ N/A Power Plant Engines: 2 Engine Mfg: Continental Engine Model: IO-550-C Visão geral Motores novos. Helice revisada. Sem ar condicionado Equipamentos: 3 horizontes SL40 Nav: Com Garmin GMA 340 GNS 430 GPS 496 330 VHF VOR ILS Transponder Garmin GTX 327 Radar acoplado em GMX 200 Diretor de voo Aspen 1000 Piloto automático S-Tec 60 Janelas com filtro solar Tanque 166gl Especificações Exterior Exterior Height: 9 ft 9 in Wing Span: 37 ft 10 in Length: 29 ft 10 in External Baggage: 46 cu ft Interior Cabin Height: 4 ft 1 In Cabin Width: 3 ft 6 In Cabin Length: 10 ft 7 In Cabin Volume: 150 cu ft Door Height: 3 ft Door Width: 3 ft Occupancy Crew: 1 Passengers: 4-5 Operating Weights Max T/O Weight: 5400 Lb Max Landing Weight: 5400 Lb Operating Weight: 4060 Lb Empty Weight: 4000 Lb Fuel Capacity: 1164 Lb Payload W/Full Fuel: 300 Lb Max Payload: 1464 Lb Range Normal Range: 1013 nm Max Range: 1276 nm Service Ceiling: 20668 ft Distances Takeoff Distance: 2300 ft Balanced Field Length: 2300 ft Landing Distance: 2500 ft Performance Rate of Climb: 1,735 fpm Climb Rate One Engine Inop: 390 fpm Max Speed: 200 kts Normal Cruise: 197 kts Economy Cruise: 163 kts Cost per Hour: $ N/A Power Plant Engines: 2 Engine Mfg: Continental Engine Model: IO-550-C
