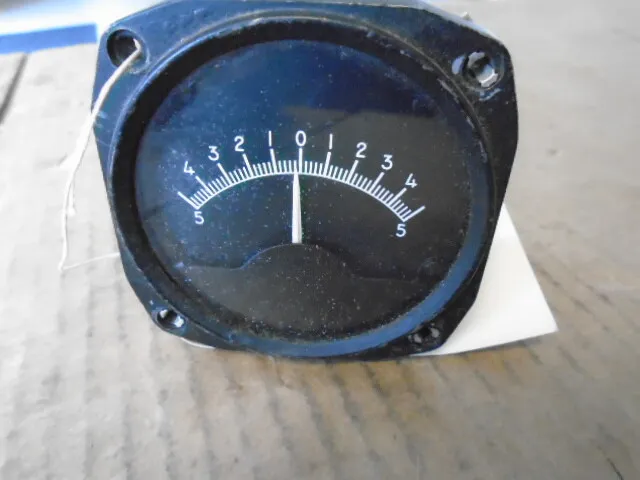

1 EA USED WESTON MODEL 843 INDICATOR - GRUMMAN P/N: 89SC1015-1

Item description from the seller

THIS IS FOR 1 EA USED WESTON MODEL 843 INDICATOR USED ON UNKNOWN GRUMMAN AIRCRAFT. USED / REMOVED FROM AIRCRAFT *UNTESTED* PERFECT FOR DISPLAY, SIMULATOR , SPARE PARTS UNIT, GIFTS, ETC. *IT IS THE SOLE RESPONSIBILITY OF THE BUYER TO HAVE THIS UNIT TESTED / CERTIFIED PRIOR TO ANY INSTALLATION OR USE* GRUMMAN P/N: 89SC1015-1 NSN: 6625-00-519-1864 MODEL 843 TYPE 5 MFG: WESTON SOLD AS IS. *UNTESTED* SPECS: Characteristic Specifications INSTALLATION DESIGN PANEL (NON-CORE DATA) PANEL FOR WHICH DESIGNED NONMAGNETIC (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE NONELECTRONIC INDICATOR TYPE DIAL W/POINTER MEASUREMENT RANGE -5.0 TO 5.0 MILLIAMPERES, DC SINGLE INDICATOR SINGLE RANGE ACCURACY IN PERCENT -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE SCALE GRADUATION TYPE LINEAR SINGLE INDICATOR SINGLE RANGE SCALE DIVISION QUANTITY 50 SINGLE INDICATOR SINGLE RANGE POINTER COLOR WHITE SINGLE INDICATOR SINGLE RANGE DIAL SCALE MARKING COLOR WHITE SINGLE INDICATOR SINGLE RANGE BACKGROUND COLOR BLACK SINGLE INDICATOR SINGLE RANGE MOVEMENT TYPE MOVING COIL, PERMANENT MAGNET MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE CIRCUIT ATTACHMENT METHOD AND QUANTITY 1 CONNECTOR, RECEPTACLE SENSITIVITY RATING 100.0 MILLIVOLTS SCALE SELECTION METHOD SWITCH CIRCUIT CURRENT FOR WHICH DESIGNED DC STYLE DESIGNATOR C4 ROUND FLUSH MTG W/4 TABS METER BODY DIAMETER BEHIND MOUNTING FLANGE 3.125 INCHES NOMINAL METER DEPTH BEHIND MOUNTING FLANGE 1.360 INCHES NOMINAL OVERALL HEIGHT 3.250 INCHES NOMINAL OVERALL LENGTH 2.987 INCHES NOMINAL OVERALL WIDTH 3.250 INCHES NOMINAL MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE MOUNTING HOLE DIAMETER 0.170 INCHES NOMINAL MOUNTING ARRANGEMENT STYLE E3 FOUR HOLE/STUD RECTANGULAR/SQUARE CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 2.47
