Overview
The COMMANDER 114B is a single-engine piston aircraft in the Commander 114 family (114, 114A, 114B, 114TC). The registry figures below are family-level maxima, not 114B-specific: up to 4 passengers, 156 kt cruise, 780 nm range, 17000 ft ceiling and 1500 kg MTOW. The supplied documents cover inspection, landing gear troubleshooting and an elevator-spar AD, so this guide focuses on what to check before buying.
- Registry data is family-level only: up to 4 passengers, 156 kt cruise, 780 nm range, 17000 ft ceiling. No 114B-specific performance figures were supplied.
- The retractable gear is a key system to check. Troubleshooting differs by serial number (7-188 and 189-380 are described separately).
- AD 2011-07-13 (elevator spar inspection) is covered by an alternative procedure that lists the 114B. Ask for proof of compliance.
- Use the Commander inspection program as a pre-buy guide: compression, oil, fuel screens, prop overhaul date, rigging, gear and logbooks.
Summary written by AI from the source document. Check the original before relying on it. See which parts of Sprinkle are written by AI.
Reference only, not for flight. Use the current approved manual for your aircraft. See terms, section 5.
Document
Source
Copy found at sprinkle.com. Sprinkle hosts a reference copy with an added summary, specifications and searchable full text.
Document details
- Type ·
- Model Guide
- Year ·
- 2026
- File size ·
- 47 KB
- Copy found at ·
- sprinkle.com
What does the COMMANDER 114B carry and how fast is it?
No 114B-specific figures were supplied. For the whole Commander 114 family, the registry lists up to 4 passengers, 156 kt cruise, 780 nm range and a 17000 ft service ceiling.
Does the COMMANDER 114B have an airworthiness directive to check?
Yes. The alternative inspection procedure for AD 2011-07-13 lists the COMMANDER 114B, all serial numbers. It concerns cracks in the elevator spar near the outboard hinge fittings.
What should I check on the COMMANDER 114B landing gear?
Check gear cycle times (retract within 12 seconds, extend within 10), the gear lights, the warning horn, the emergency extension, and strut and tire pressures. Also check the squat switch and limit switch condition.
What is the COMMANDER 114B Model Guide?
The COMMANDER 114B Model Guide is a model guide for the COMMANDER 114B, dated 2026.
What year was the COMMANDER 114B Model Guide published?
The COMMANDER 114B Model Guide — the COMMANDER 114B model guide on file — is dated 2026.
Common. More common than 92% of the aircraft models we track.
Most owners only have the POH. Here's the essential set for the COMMANDER 114B.
- Pilot's Operating Handbook / AFM
- Checklist
- Maintenance Manual
- Parts Catalog (IPC)
- Systems & Wiring
- Service Bulletins on file
- Type Certificate (TCDS)

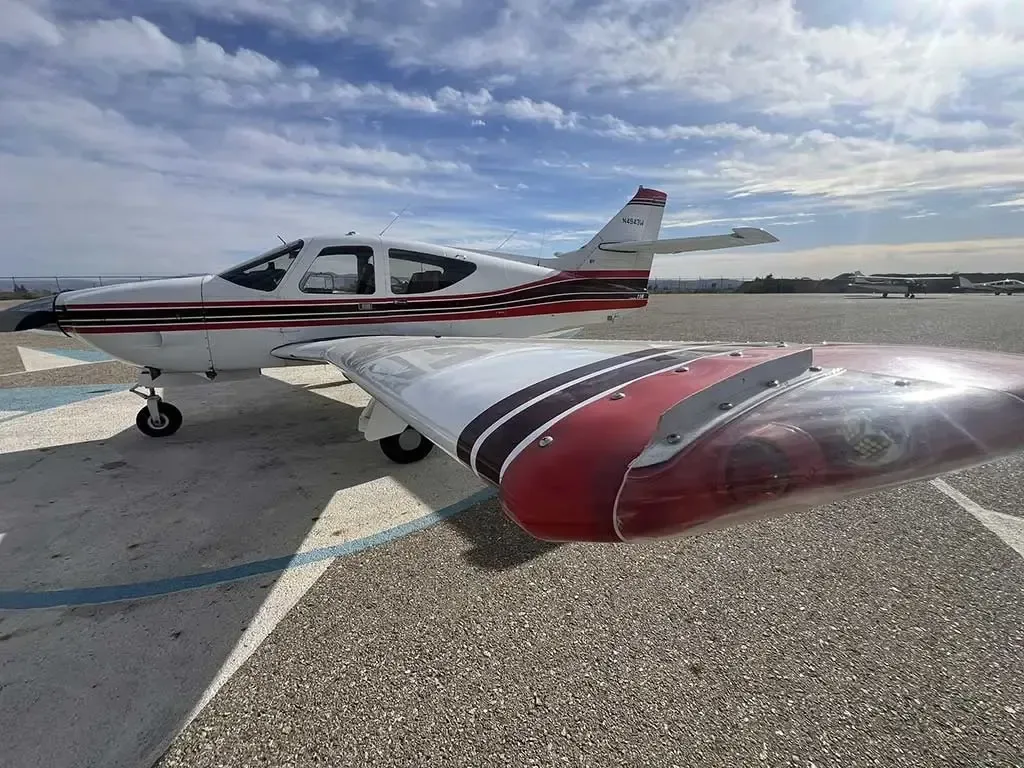

COMMANDER 114B for sale now
Free — save the 114 to your watchlist and track it in one place.
More COMMANDER 114Bmanuals & documents
Related documents
- COMMANDER 112 Model GuideCOMMANDER 112 · Model Guide
- Commander Inspection ProgramCOMMANDER 114B · Checklist
- Alternative Inspection Procedure for AD 2011-07-13COMMANDER 114B · Service Bulletins
- CESSNA 414 Model GuideCESSNA 414 · Model Guide
- BEECHCRAFT Baron 55 Model GuideBEECHCRAFT Baron 55 · Model Guide
If you fly the COMMANDER 114B, you may also be researching these.
In this document
Landing gear checks
On jacks, the gear should retract within 12 seconds and extend within 10 seconds. With gear up, the warning horn should sound when the throttle is reduced to 12-15 inches of MP or flaps reach 22.5 degrees. Strut pressures are nose 90 PSI and main 150 PSI. Check the emergency gear extension and gear warning lights too.
Inspection program highlights
The checklist includes a hot engine differential compression check on cylinders 1-4, oil drain, suction screen and filter, fuel screen cleaning, and spark plug torque of 360-420 in lbs. It also covers verifying the prop overhaul due date, control rigging, and logbooks for pitot/static, transponder and ELT. Tires: nose 31 PSI, mains 29 PSI.
AD 2011-07-13 elevator spar
The alternative procedure lists the 114B (all serial numbers). It calls for a 10x magnifier inspection around the outboard elevator hinge fittings for cracks in the spar web, then dye penetrant and a borescope check if suspect. Suspect areas mean removing the elevator. Cracks require a replacement spar or an FAA-approved repair before further flight.
Summary written by AI from the source document. Check the original before relying on it. See which parts of Sprinkle are written by AI.
Safety notes
- A gear pump that keeps running can overheat in as little as 5 minutes. A pullable gear pump breaker is valuable; otherwise turn the master switch off.
- Elevator spar cracks found under AD 2011-07-13 must be fixed before further flight.
- Gear troubleshooting needs aircraft jacks; misuse can injure people and damage the aircraft. Use a qualified mechanic.
